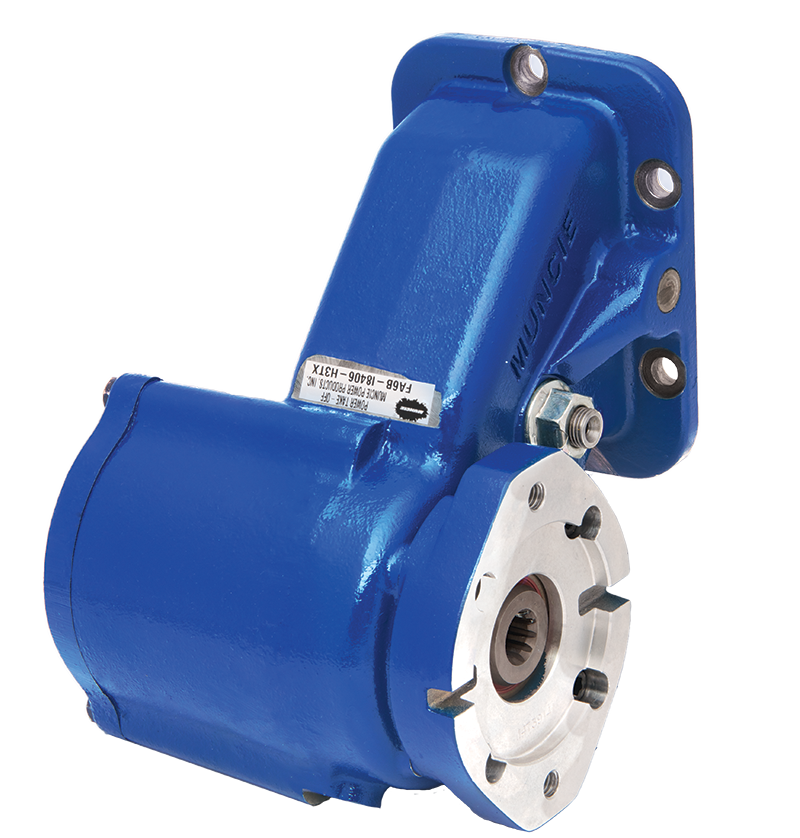

FA6B Series Power Take-Off
FA6B's angular housing design moves the clutch shifted output below chassis obstructions for either drive shaft applications or direct mount pumps. Muncie's FA6B Series PTO is activated by electric over hydraulic means for positive engagement while providing maximum torque capacity with a surprisingly simple installation.
- Solenoid activated clutch shift: Positive, no "gear clash" engagement
- Advanced Gear Design: Reduced Noise, Robust Design
- Pre-configured wiring harness: Easy, plug-in installation
- Remote and direct mount models: Versatile pump mounting
- One year warranty: Industry Leading Support and Availability
| PTO TORQUE & HORSEPOWER RATINGS | |||||||
|---|---|---|---|---|---|---|---|
| PTO Series |
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
MAX Speed
|
| FA6B-A67 | 06 | 25 | 131 | 252 | 19 | 177 | 2500 |
| FA6B-I84 | 06 | 15 | 86 | 235 | 11 | 116 | 2500 |
| FA6B-I84/AS69RC Transmission | 06 | 24 | 124 | 217 | 16 | 172 | 2500 |

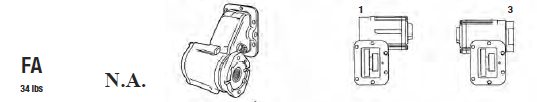

ASSEMBLY ARRANGEMENTS
DIMENSIONAL DRAWINGS
The Muncie FA6B Series Power Take-Offs are warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
