Allison 1000-2000 PTOs

  • TG6 Power Take-Off

    As the most versatile and widely used double gear type power take-off in the industry, the TG Series is available with 10 speed ratios, 19 shift types, 19 output shaft options and input gears for popular transmissions such as Aisin, Allison, Eaton Fuller, and Mack. The TG6 Series PTO is a versatile 6-bolt mechanical shift PTO featuring an aluminum housing for lighter weight, reduced noise, and superior heat dissipation.



    Max Torque

    285 lbs.ft.

    Max HP (@1000 RPM)

    54 HP

    Weight

    22 lbs.

  • CS6 Power Take-Off

    The CS6 series are Clutch Shift PTO's designed to work well on Allison and Aisin automatics, and many current manual transmissions. Like all of Muncie's "Clutch Shift" line of PTOs, the CS6 offers popular direct mount pump options as well as Muncie's patented shaft brake, a standard feature. An upgraded multi-disk clutch brake can be used where absolute shaft stoppage is required.



    Max Torque

    350 lbs.ft.

    Max HP (@1000 RPM)

    67 HP

    Weight

    47 lbs.

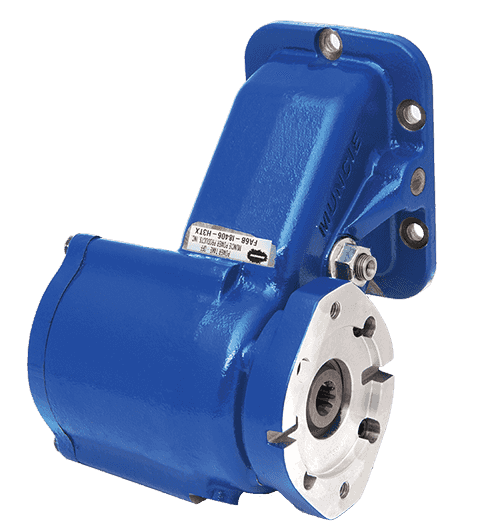

  • FA6B Series Power Take-Off

    With its angular housing design, the FA6B Series PTO moves the clutch shifted output below chassis obstructions for either drive shaft applications or direct mount pumps for Allison and Aisin 6-bolt transmissions. Direct pump mounts for SAE “A” flanges with 7/8”-13T or ¾”-11 shafts are available.

    Max Torque

    127 lbs.ft.

    Max HP (@1000 RPM)

    24 HP
