Take Control of Your Hydraulic System

January 14, 2016

Whitney VanKlaveren – Marketing Communications Coordinator

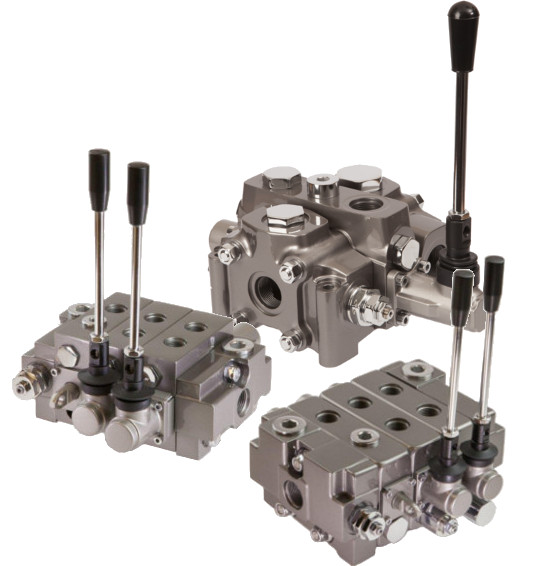

An image that shows three valve blocks: the V080 Series, V130 Series, and V250 Series that are all silver in color.

Muncie Power Products offers a family of directional control valves built with higher pressure capabilities to withstand the most extreme applications.

Featuring high-grade iron castings and nickel-plated or hard chrome spools to meet high pressure applications, the family includes three series. Different spool, control, positioner, and accessory options allow for customization of the V080, V130, and V250 Series.

The V080 Series is designed for a maximum flow capacity of 30 GPM and a max pressure of 5,075 PSI.

With a maximum flow capacity of 55 GPM and a max pressure of 5,440 PSI, the V130 Series is a mid-size option.

Muncie Power's latest directional control, the V250 Series, allows for higher flow rates. It is designed for a maximum flow capacity of 75 GPM and a max pressure of 4,000 PSI.

Each work section is pre-assembled and 100% tested prior to shipment.

For more information regarding Muncie Power’s family of directional control valves, please click here or contact customer service at 1-800-367-7867 or an authorized distributor near you found here.
