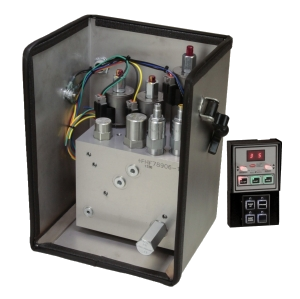

MESP 3020 Electronic Spreader System
The MESP 3020 is an electronic spreader package with an integrated hoist circuit is a spreader control system for snow and ice control vehicles. This easy-to-use controller includes pause and blast functionality; five adjustments to control the auger, spinner, and ground speed; and includes manual overrides, and an integrated hoist control.
With a simple setup for driver convenience, and the ability to be installed on new vehicles or retro-fitted for all common V-Body and tailgate spreaders; the MESP 3020 is groundspeed control made simple.
- Flow sharing or non-flow sharing versions available
- Stainless or powder coated enclosures available
- Compatible with all spreaders (V-bod, tailgate spreaders, etc.)
- Easy to use, setup, & install
- New or retro fit
- Auto and Manual operation
- Pause and Blast settings (spreader)
- Five Adjustments
- Auger minimum / maximum
- Spinner minimum / maximum
- Manual overrides
- Adjustable main relief / downside hoist relief
MESP 3020 FlyerMP13-04
MESP 3020 Spec SheetN/A
Snow & Ice Control Solutions - Product OverviewMI20-18
Snow and Ice One-Ton Truck FlyerMI20-14
MESP3020FASM - Manifold Service ManualIN14-17
MESP3020GASM - Manifold Service ManualIN14-07
MESP3020FASM Wiring Diagram R3407R3407
MESP3020GASM Wiring Diagram R3409R3409
The MESP3020Mike Knox – Production Manager Snow & Ice Division
Meeting the ChallengeWhitney Rodeffer – Marketing Communications Coordinator
MESP 300 Series: Consistent, reliable performanceMike Knox – Production Manager – Snow & Ice Division
VIDEO: Easy snow and ice operation for any truck size with MESP 300 SeriesBreanna Daugherty – Marketing Communications Specialist
- Spinner Flow - 8 GPM
- Auger Flow - 17 GPM
- Hoist Flow - 5 GPM
- Adjustable Relief -3,000 PSI Max
- Adjustable Spreader Relief -1,500 PSI
- Downside Hoist Relief - 500 PSI
- Max Inlet Flow - 20 GPM
The Muncie Power Products Snow & Ice System (the “System”) is warranted against any defect in material and workmanship which existed at the time of sale by Muncie Power Products, according to the following provisions, subject to the requirements that the System, and component parts thereof, must be used only in accordance with catalogue and package instructions.
With the exception of specific component parts of the System that may have a longer or more extensive warranty, the System, and the components thereof, is warranted for a period of one year from the date of sale. If during the warranty period the System, or a component thereof, fails to operate to Muncie Power Products' specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie Power Products, the defective part will be repaired or replaced, at Muncie Power Products' election, at no charge, if the defective part is returned to Muncie Power Products with transportation prepaid.
WARNING: The above warranty shall terminate if any alterations or repairs are made to the System, or a component thereof, other than alterations or repairs made by Muncie Power Products, or if the System is used on any equipment other than the equipment upon which it is first installed.
The foregoing warranty is in lieu of, and Muncie Power Products expressly disclaims, all other obligations and liabilities, including negligence and all warranties of merchantability and suitability, expressed or implied. The foregoing warranty states Muncie Power Products' entire and exclusive liability and buyer's exclusive remedy for any claim of damages in connection with the sale, repair or replacement of the System or its component parts, their design, installation or operation. Muncie Power Products will in no event be liable for any direct, indirect, special, incidental or consequential damages whatsoever, and our liability under no circumstances will exceed the contract price for the goods for which liability is claimed
