Alpha Series Power Take-Off
The Alpha series PTO is an obsolete product. This page is used for reference material only.

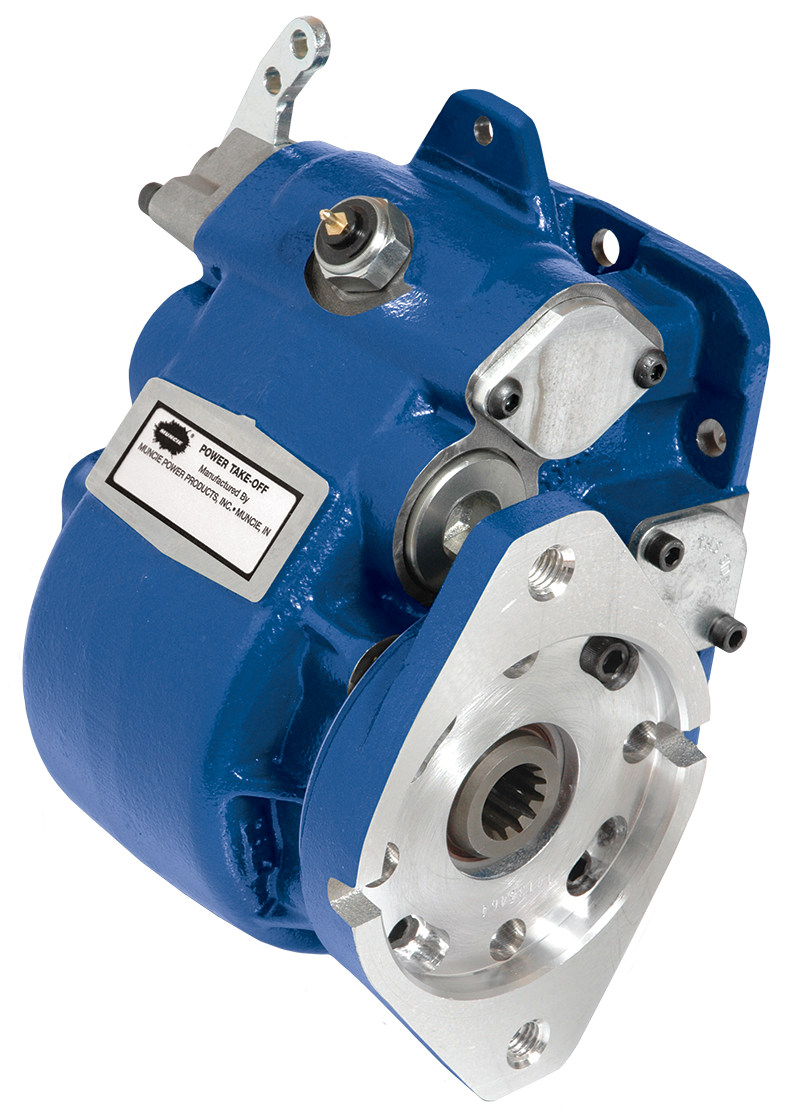

Muncie Power Products' "Alpha" Series PTO uses proven internal components from the TG Series, in a compact housing. The integral shift mechanism provides proper clearance on Dodge Ram 4 x 4 chassis with manual transmissions.
The Alpha series PTO is an obsolete product. This page is used for reference material only.
- Ductile Iron Housing: Higher Strength vs Cast Iron Housing
- 6 or 8-bolt housing: For simplified installation
- Constant mesh input gear: Isolates transmission from engagement errors
- Compact size: Minimizes mounting interference
- Electric/hydraulic shift option: Eliminates the need for shift cables
- Rotatable hydraulic flanges: Maximizes pump clearance
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |

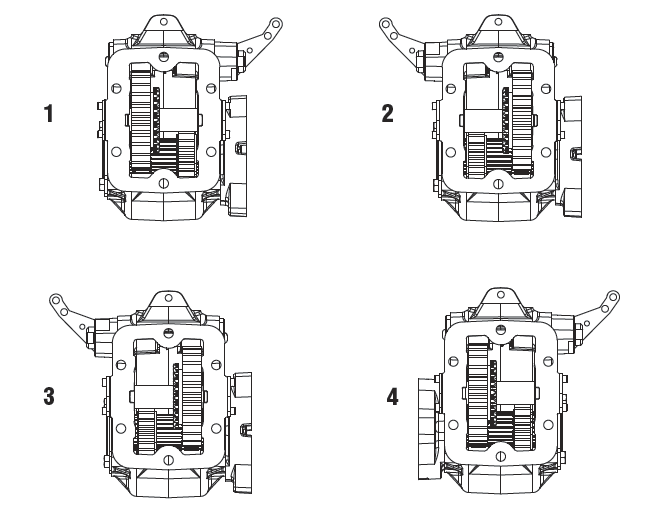

ASSEMBLY ARRANGEMENTS

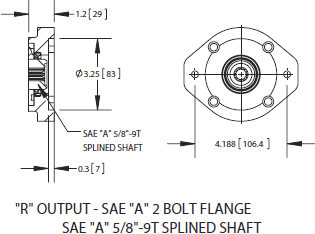

DIMENSIONAL DRAWINGS

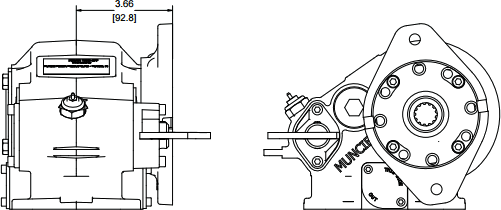

S OPTION

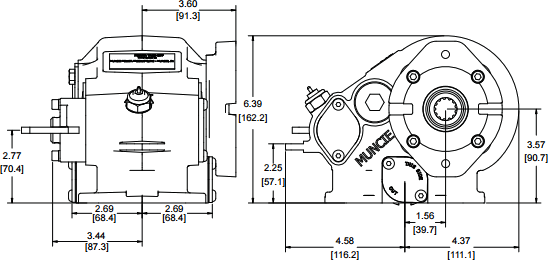

T OPTION
