CD10 Series Power Take-Off
The CD10 is an obsolete product. This page is used for reference material only.

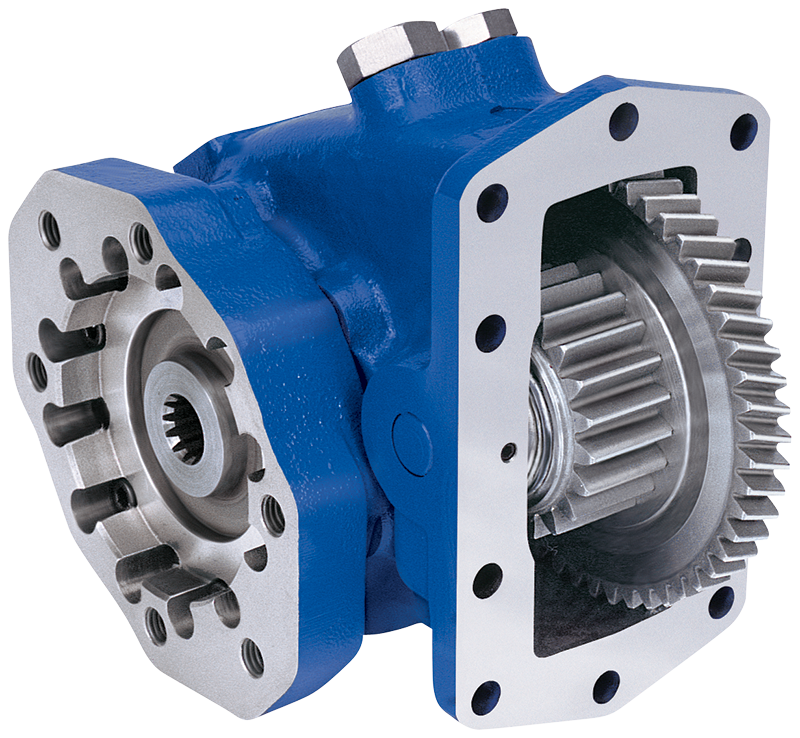

The CD-10 Series Power Take-Off is a constant drive (non-shiftable) PTO designed for use on the Allison and Caterpillar automatic transmissions. The CD-10 provides a functional alternative to front, crank shaft driven, hydraulic pump applications. A choice of popular S.A.E. and DIN direct mount pump options and torque ratings of up 400 lb.ft. provide power and versatility for the most demanding applications. Its seven speed ratios make it easy to select the correct PTO for your application.
A30 NOW AVAILABLE
Replacing the CD10 Series, the A30 Series power take-off is the new, PTO solution for Allison 3000 & 4000 transmissions. If you currently own an CD10 Series and are looking for resources like literature, specs, etc., then feel free to close this window. Otherwise, please head on over to our A30 page by clicking on the button below.
VIEW A30 SERIESA30 - xxx xx - xx - x xx xx
The CD10 is an obsolete product. This page is used for reference material only.
- Up to 400 lbs.ft. torque capacity and 76 H.P. @1000 RPM: Power to drive high volume pumps
- Three standard output shafts in both keyed and flange types: Versatility for remote pump drives
- S.A.E. "A", "B", "BB", and "C"; DIN 5462 direct mount pump options: Fits most popular pumps
- Multi-position direct mount flanges: Allows pump to be positioned for maximum clearance
- Designed to work with Muncie's PTO Shaft Extensions on Allison 3000 and 4000 series transmissions: Clearance for large volume and variable displacement pumps
- Four assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
- Standard pressure lubrication: No extra cost
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 06 | 73 | 385 | 270 | (54) | (522) | (365) |
| 07 | 68 | 360 | 252 | (51) | (488) | (342) |
| 08 | 64 | 336 | 235 | (48) | (456) | (319) |
| 10 | 59 | 310 | 217 | (44) | (420) | (294) |
| 12 | 50 | 260 | 182 | (37) | (352) | (246) |
| 15 | 43 | 225 | 158 | (32) | (305) | (214) |

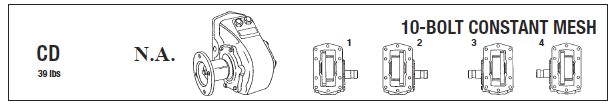

ASSEMBLY ARRANGEMENTS

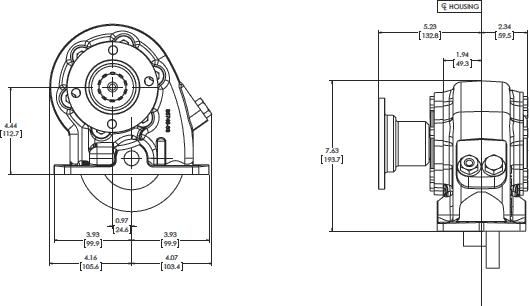

DIMENSIONAL DRAWINGS
