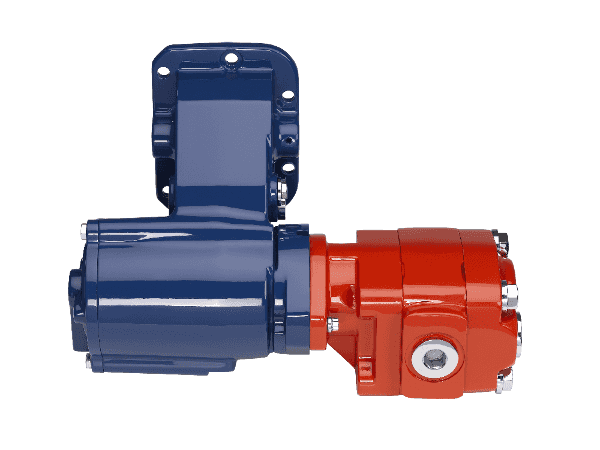

FR63/67 Series Power Take-Off
The FR63 and FR67 Series power take-offs were designed in cooperation with Ford Motor Company's engineers to fit the 5R110 "TorqShift®". Two models are available: the FR63 for two wheel drive vehicles, and the FR67 for four wheel drive. The FR63 and FR67 are available in both remote and direct mount pump models. All are wet clutch type power take-offs.
Max Torque - 190 lb.-ft
- Integral solenoid design (FR67): Reduces installation time
- Solenoid activated clutch shift: Positive, no "gear clash" engagement
- Pre-configured wiring harness: Easy, plug-in installation
- Remote and direct mount models: Versatile pump mounting
- One year warranty: Quality assurance
FR Series FlyerMP05-02
FR63/64 & 67 Installation & Owner's ManualIN03-01
FR63/64 & 67 Parts List & Service ManualSP11-05
FR Series Troubleshooting GuideTRG09-04
Power Take-offs for Ford Transmissions: Specifications, Applications, and What to ExpectKyle Beaty – Digital Marketing Specialist II
Hydraulic Pumps for Power Take-offs on Ford TrucksAndrew Dawson – Manager of Marketing and Advertising
- Weight: 34 lbs.
- Housing Construction: Aluminum
- Maximum Torque: 190 lb. ft. (FR)
- Largest Pump Offered: 2.0 cu. in. (FR)
- Speed Ratio: 1
- Output Shaft Options: 5
The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
