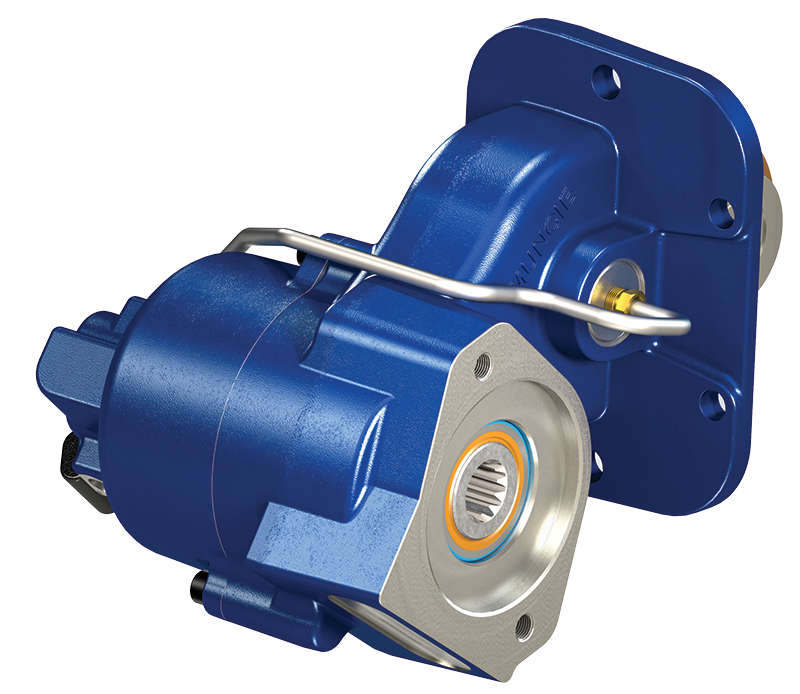

FR66 SERIES Power Take-Off
The FR66 is an obsolete product. This page is used for reference material only.
The FR66 can deliver up to 200 lbs.ft. of torque for stationary applications and mobile applications are possible with up to 120 lbs.ft. of torque. Say goodbye to low power ratings, replacement belts, and difficult clutch pump installations.
Muncie's FR66 Series PTO provides maximum torque capacity with a surprisingly simple installation.
2011-Present F250-F550 (Diesel) with 6R140
2017-Present F250-F550 (Gas) with 6R140
2016-Present F650-F750 (Diesel) with 6R140
2013-Present F650-F750 (Gas) with 6R140
FR6Q NOW AVAILABLE

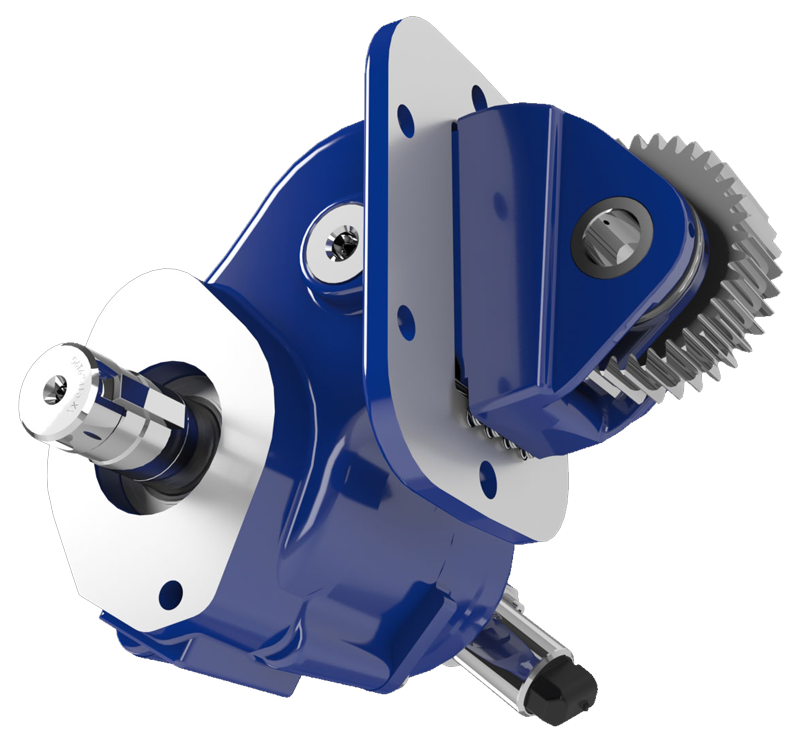

Replacing the FR66 Series, the FR6Q Series power take-off is the new, quiet PTO solution for Ford. If you currently own an FR66 Series and are looking for resources like literature, specs, etc., then feel free to close this window. Otherwise, please head on over to our FR6Q page by clicking on the button below.
VIEW FR6Q SERIES
- Solenoid activated clutch shift: Positive, no "gear clash" engagement
- Live-Drive Functionality: On-the-Go PTO Operation - No torque converter slippage
- Advanced Gear Design: Reduced Noise, Robust Design
- Pre-configured wiring harness: Easy, plug-in installation
- Remote and direct mount models: Versatile pump mounting
- One year warranty: Industry Leading Support
-
F250 – F550 Diesel BOTH Stationary AND Mobile mode Wire Harness Instructions D3-BIN13-08
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 09 | 39 | 200 | 140 | (29) | (271) | (190) |
| 22 | *120 | 120 | (16) | (162) | (162) | |
| *FR66 limit in mobile applications continuous intermittent | ||||||
The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
MODEL NUMBER CONSTRUCTION
