HS24 SERIES Power Take-Off
The HS24 series PTO is an obsolete product. This page is used for reference material only.

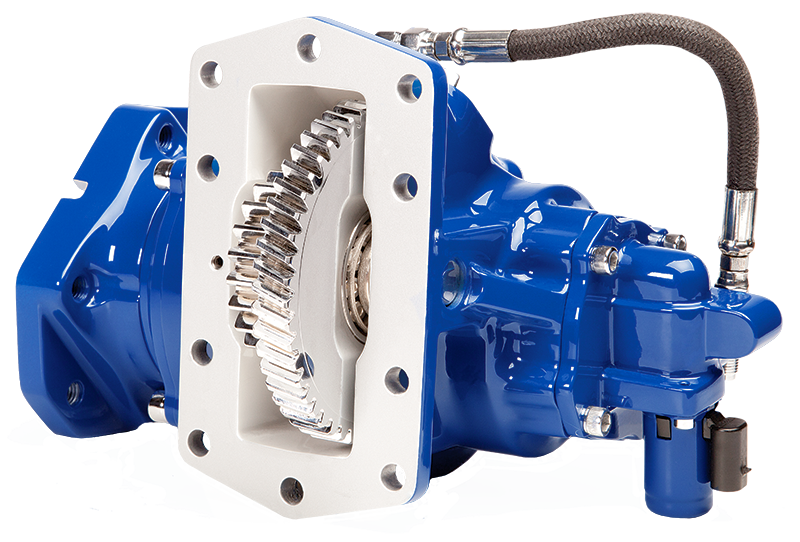

A solution for limited clearance applications, the HS24 Series power take-off features a sculptured housing designed to clear mounting obstructions and a direct mount solenoid for a clean and simple installation.
The HS24 series PTO is an obsolete product. This page is used for reference material only.
- Power-Dense Design: Provides up to 325 lbs.ft. torque
- Sculptured Housing: Fits in tight spaces
- Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
- Integral Solenoid: Reduces installation time
- Patented Muncie shaft brake: Assists in preventing shaft rotation in "OFF" mode
- Standard pressure lubrication: No extra cost
Installation Instructions
Service Parts Manual
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 06 | 62 | 325 | 228 | (46) | (440) | (308) |
| 07 | 58 | 305 | 214 | (43) | (414) | (290) |
| 09 | 55 | 290 | 203 | (41) | (393) | (275) |
| 12 | 48 | 250 | 175 | (36) | (338) | (237) |
ASSEMBLY ARRANGEMENTS

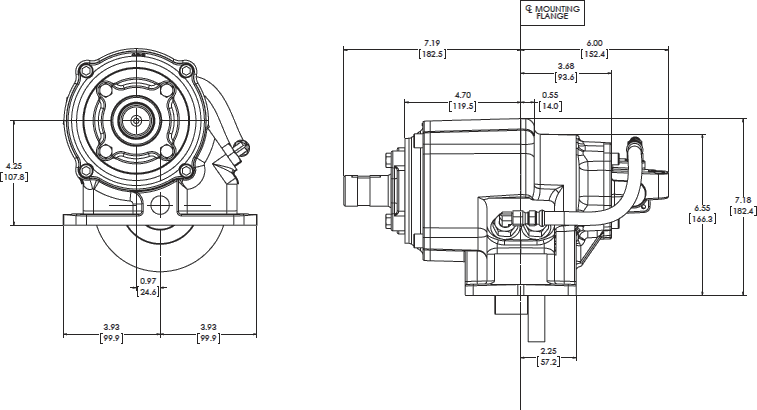

DIMENSIONAL DRAWINGS
MODEL NUMBER CONSTRUCTION
