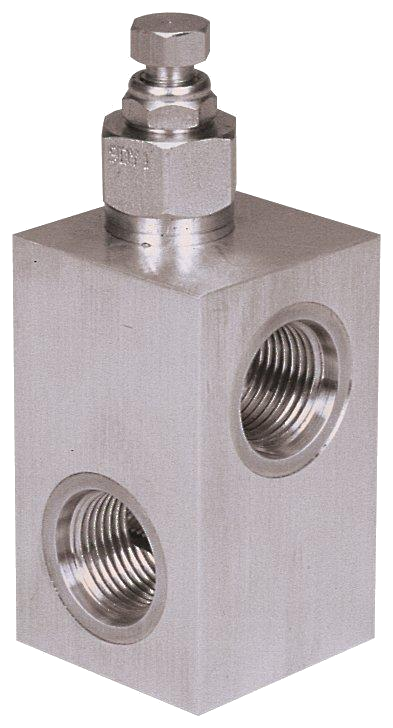

Pilot Operated Relief Valves
Pilot operated relief valves provide maximum system pressure protection, even with widely varying flow rates. These valves can be inline or tee mounted. Call our Toll Free # at 1-(800) 367-7867 for larger capacity or higher pressure requirements.
- Accurate control of maximum pressure settings
- Max. Flow- 30 GPM (114 LPM)
- Adj. Pressure Range: 300-3000 PSI (21-207 BAR)
- Ports- SAE-10 Straight Thread
- Preset at 1000 PSI (69 BAR)
MODEL: RV-60
- Max. Flow- 60 GPM (227 LMP)
- Range- 300-3000 PSI (21-207 BAR)
- Ports- SAE-16 Straight Thread
- Preset at 2000 PSI (138 BAR)
The Muncie Pilot Operated Relief Valve is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Valve must be used only in accordance with catalogue and package instructions. The Valve is warranted for a period of one year from date of installation. If during the warranty period the Valve fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Warning. The above warranty shall terminate if any alterations or repairs are made to the Valve other than at a Service Center owned by Muncie, or if the Valve is used upon any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
No additional data at this time.
