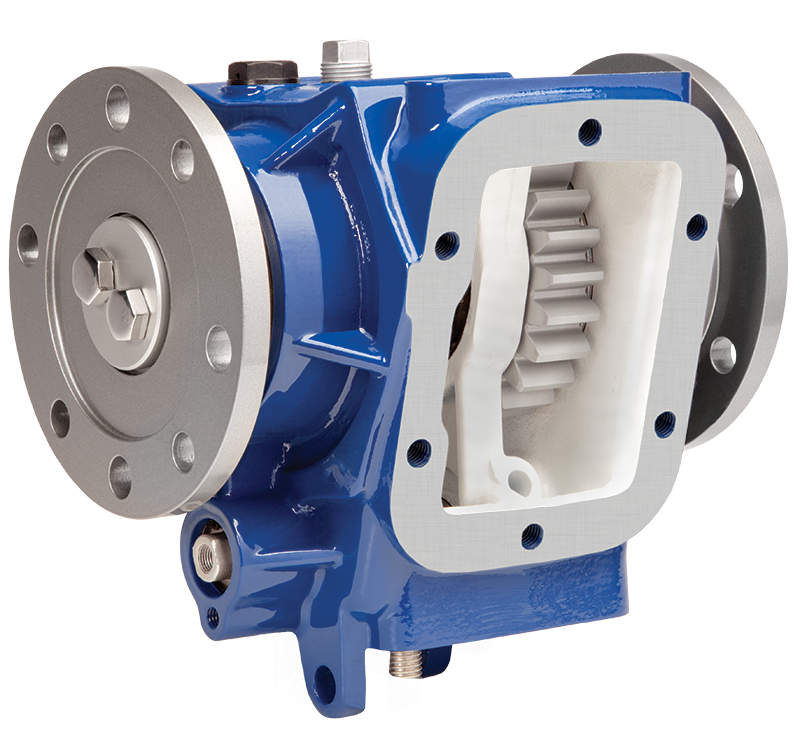

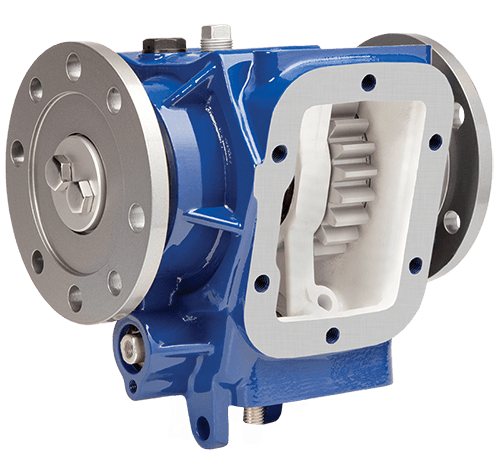

SS66 Series Split Shaft Power Take-Off

Interpump Hydraulics' SS66 Series split shaft PTOs are used to provide two 6-bolt PTO apertures where none exist on the main transmission or where space limitations restrict access to the second transmission opening. Split shafts are designed to use the main vehicle driveshaft as their input and provide multiple outputs for auxiliary power equipment. When engaged, the main driveshaft is disconnected from the rear axle. The SS66 is typically used on chassis ranging up to Class 5.

  • The SS66 is also used behind a single PTO to offer multiple PTO options
  • (2) 6-bolt PTO openings can accept various common PTO series such as the TG or CS6
  • Engagement can be via air-shift or heavy duty push/pull cable
Brochure
Service Parts Manual
  • Utilizing Split Shaft Power Take-Offs
    Brad Smith – Senior Product Engineering Specialist II
    VIEW BLOG
  • Muncie Power Split Shaft PTOs Provide Extra Umph
    Whitney VanKlaveren – Marketing Communications Coordinator
    VIEW BLOG
  • Weight: 20 lbs. (Split shaft unit only, w/o PTOs)
  • Maximum Torque (thru-shaft): 2900 lbs.ft.
  • Maximum PTO Torque: Varies, (see MUNC-01 application page in QR Application Catalog)
  • Output Shaft Options: Varies with PTOs mounted
  • Through Shaft Flanges: Spicer 1410, 1500/1510 Series

The Muncie SS66 Series Power Take-Offs are warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.

If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.

MODEL NUMBER CONSTRUCTION
