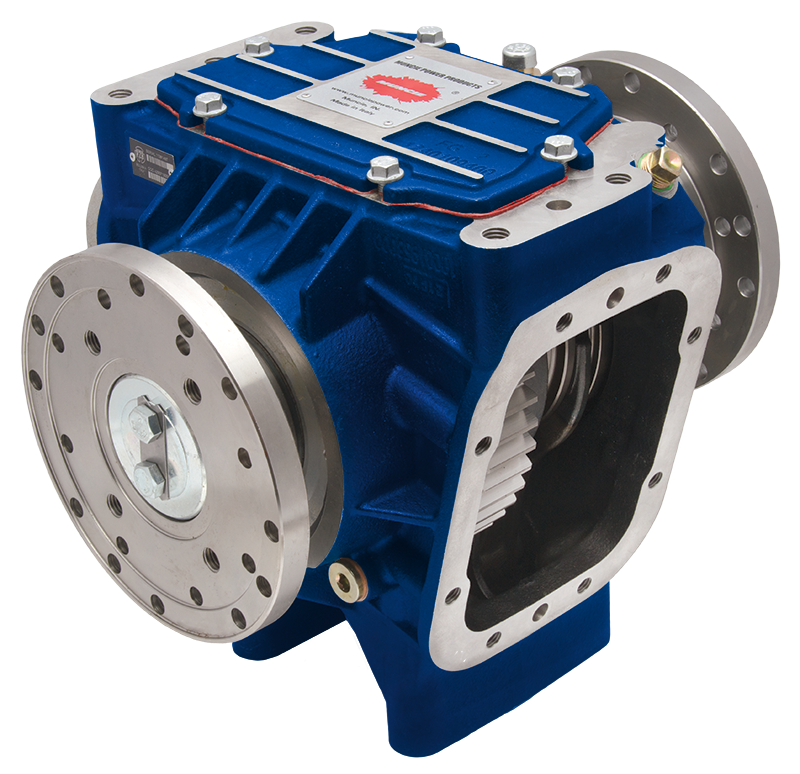

SS88 Series Split Shaft Power Take-Off
Interpump Hydraulics' auxiliary power drive SS88 Series split shaft PTO allows for mounting of two 8-bolt type PTOs behind the transmission on medium-duty and heavy-duty vehicles.
The SS88 has two through shaft torque options available: the 14,000 lb.ft. rating and the 21,000 lb.ft. rating. The PTO drive gear in the SS88 is a high quality, 6-pitch spur gear that can handle the torque ratings of the large 8-bolt PTOs like the Muncie Power 82 Series.
The through shaft is air or hydraulic shift-able to disengage the rear axle to allow for stationary operation; PTOs can be mechanically shifted, air-mechanically shifted and or air-clutch shifted (depending on the series specified).
- High Through Torque Capacity (14,000 lbs.ft. or 21,000 lbs.ft.)
- Two SAE 8-Bolt aperatures
- Air or hydraulic shift
- High quality, 6-pitch spur gear
- Compact design
- Durable components common to other Muncie Power split shaft products
-
Utilizing Split Shaft Power Take-OffsBrad Smith – Senior Product Engineering Specialist II
-
Muncie Power Split Shaft PTOs Provide Extra UmphWhitney VanKlaveren – Marketing Communications Coordinator
- Weight: 160 lbs. (Split shaft unit with flanges only, w/o PTOs)
- Maximum Torque (thru-shaft): 14,000 lbs.ft. or 21,000 lbs.ft.
- Maximum PTO Torque: Varies, (see MUNC-02 application page in QR Application Catalog)
- Output Shaft Options: Varies with PTOs mounted
- Through Shaft Flanges: 1550, 1610, and 1710 and 1810 Series
The Muncie SS88 Series Power Take-Offs are warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
MODEL NUMBER CONSTRUCTION
