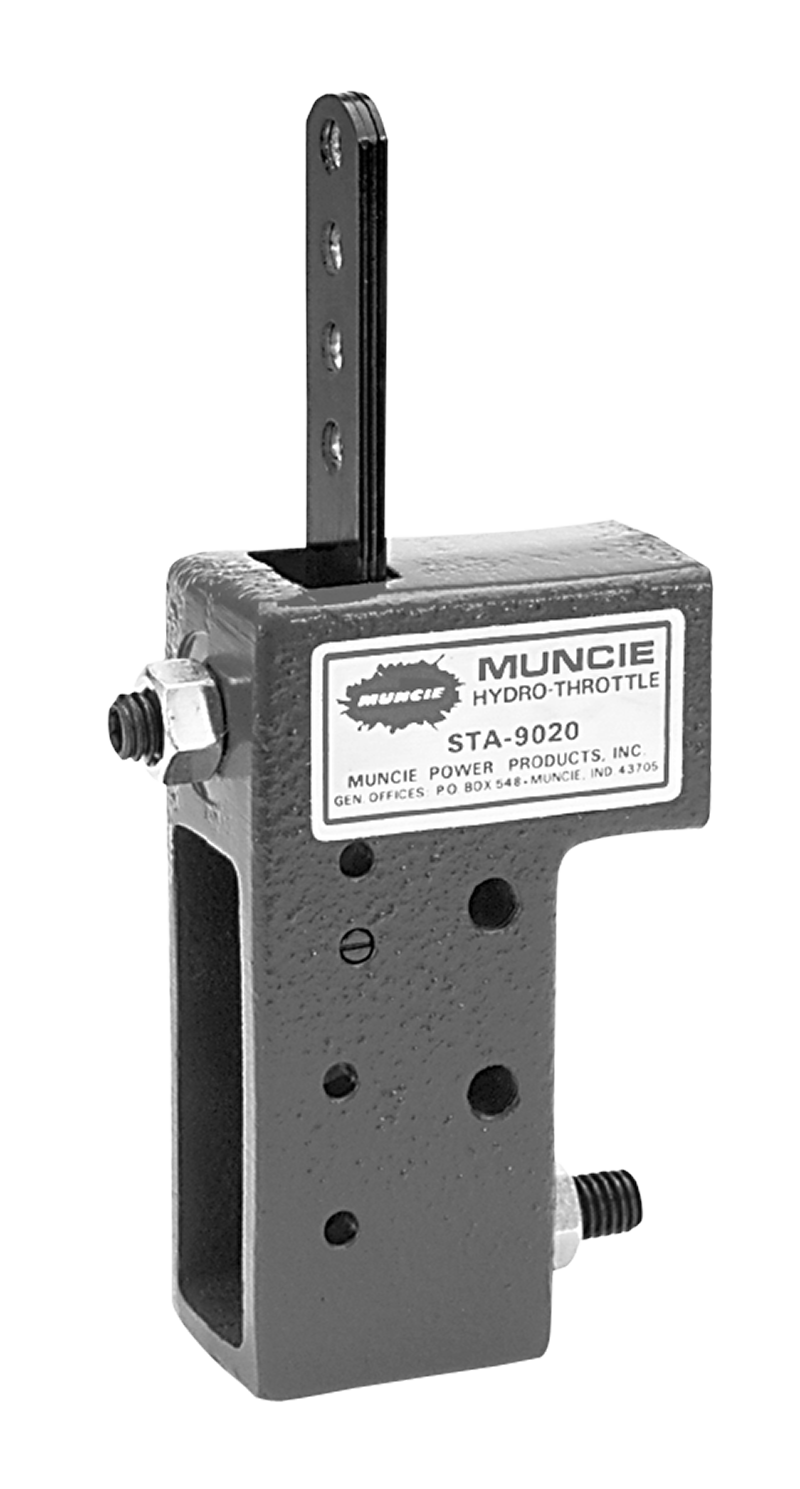

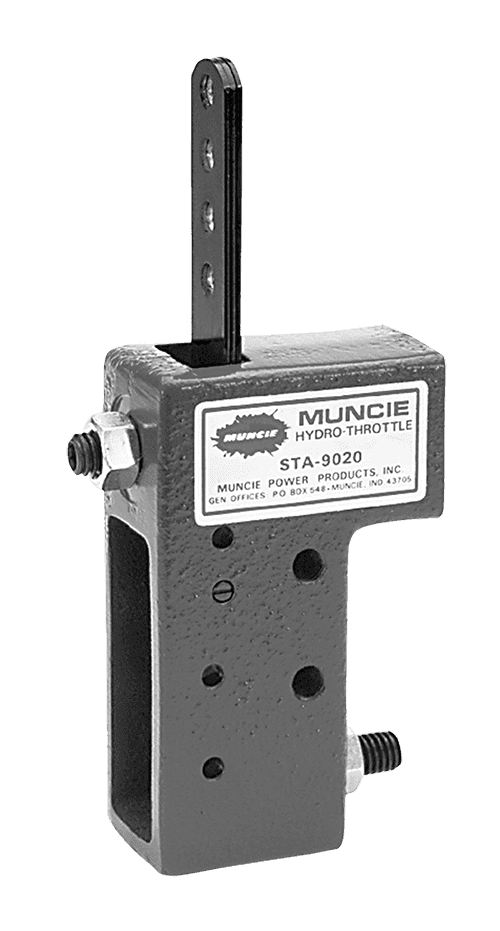

STA-9020 Hydro-Throttle Control
The Muncie STA-9020 Hydro-Throttle is an effective, inexpensive throttle advance well suited for many types of hydraulic systems. The Hydro-Throttle senses hydraulic system pressure and mechanically advances the engine to a predetermined RPM. The engine speed is then automatically returned to idle when the hydraulic pressure is released. The compact design of the Hydro-Throttle makes it adaptable to almost any gasoline or diesel engine.
(This product cannot be used with electronically controlled engines.)
Electronic engine controls have mostly done away with the need for mechanical throttle advance devices. However for older vehicles, or those without electronic controls, the STA-9020 remains an inexpensive, viable alternative to cables or solenoids.
- Compact size: Easy installation
- Automatic operation: No operator training required, saves fuel
- Universal mounting: Fits most mechanically controlled engines
- Improves job efficiency allows engine to low speed idle
Net Weight 3 lbs
Width 2 3/8"
Length 6 3/8"
Thickness 1 1/4"
Piston Diameter 7/16"
Port Size 3/8 O.D.T Straight Thread
Muncie Power Products, Inc. warrants the STA-9020 to be free from defective materials and workmanship and will repair or replace, at our option, any units found to be defective upon examination by the Muncie Division from which the unit was unit was purchased, for twelve months from the date of installation. Units may not be returned unless specifically authorized in writing by the Muncie Division from which the unit was unit was purchased. Muncie Power Products, Inc. does not assume any responsibility or liability for damage to any component, which may result from the installation or attempted installation of the STA-9020 Hydro-Throttle Control.
