SH PTO Available for Eaton Endurant and PACCAR


July 02, 2018
Whitney VanKlaveren – Marketing Communications Coordinator

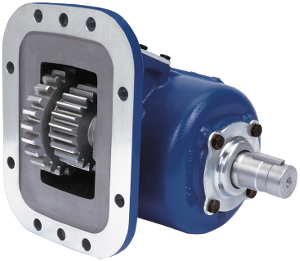

An image of the SH Series PTO that is blue and silver in color.The SH Series is now available for the Eaton Endurant and PACCAR transmissions.

Instead of a paper gasket, the SH Series for the Eaton Endurant and PACCAR Transmission features a seal plate gasket. This seal plate gasket is able to withstand the specialty oil used by the transmission and allows the installer to mount the PTO without checking backlash. The seal plate gasket is part of a cooperative design effort between Eaton and Muncie Power Products.

The SH PTO is driven from a main transmission gear. This requires the PTO to have a large input gear to reach it. As a result, the SH Series for the Eaton Endurant and PACCAR Transmission has a non-standard housing in order to provide clearance for the gear. The model number for the SH Series is SH8F-E80**-P1**.



A red button with the words "VIEW PRODUCT" and a hyperlink to the SH Series PTO for Eaton and PACCAR Transmissions.
