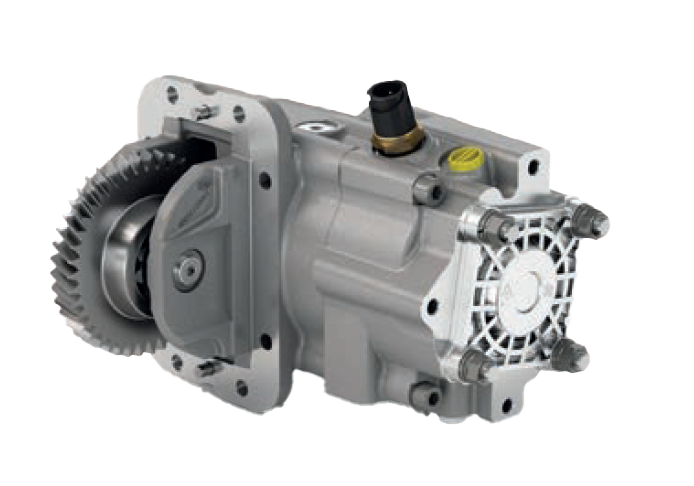

The P60 Series PTO is Available for the Paccar TX-8 Transmission
The P60 Series power take-off (PTO)—which is manufactured by our sister company, Interpump Hydraulics—is available for the PACCAR TX-8 transmission.
The PACCAR TX-8 is a medium-duty, automatic transmission available only in PACCAR trucks. The PTO opening is a proprietary 8-bolt pad, located on both sides of the transmission. The transmission is manufactured by ZF and will have a ZF tag on the transmission with POWERLINE listed as the model.
Basic specifications for the P60 Series PTO:
- 258 lbs.ft. continuous/intermittent torque rating
- 121% of engine speed
- Aluminum housing
- Air shift only
- Available for right or left-hand opening (dual PTO applications not permitted at this time)
- Available with SAE B 2- and 4-bolt, DIN 5462, or 1310 companion flange outputs
Please note that direct-mount hydraulic pumps over 20 lbs. (including hoses, fittings, etc.) will require a pump support bracket.
RELATED: Pump Support Bracket Implementation and Design
Stationary and crawl modes are the only available PTO modes at this time. Mobile mode is not available.
The transmission can only support a single PTO. Applications using two PTOs are not permitted.
Trucks must be ordered with the correct PTO prep codes to have the correct PTO capability.
PTO Prep Codes
4233510 – Park Brake Interlock for Transmission Mounted PTO
4233900 – (1) Dash MTD Single Acting EOA PTO CTRL Electric Over Air
The P58 Series also requires one of the following:
4257110 – LH Mounted Trans PTO Provisions
4257120 – RH Mounted Trans PTO Provisions
For installation information:
- IN21-12: P58/P60 Series Installation Manual
- IN22-06: P58/P60 Series Flange Kit Installation Instruction
