82 Series Power Take-Off
Heavy Duty

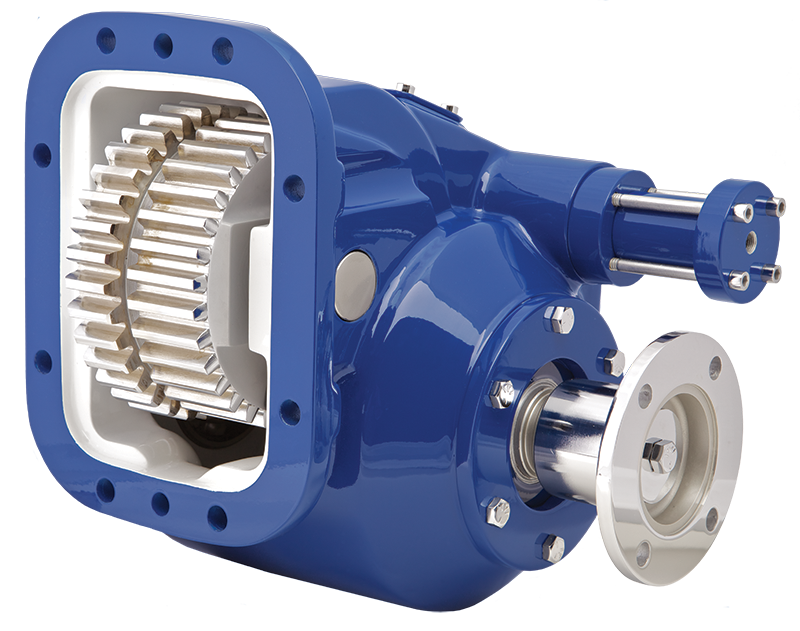

The Muncie 82 Series is a heavy-duty, 8-bolt power take-off designed for driving mechanical equipment and high volume or multiple section hydraulic pumps with high-torque requirements. The 82 Series features a cast iron housing, lever or air shift and optional single or dual hydraulic pump mounts.
- Up to 500 lbs.ft. torque capacity and 95 H.P. at 1,000 RPM: Power to drive high-volume pumps, high CFM blowers
- Double-acting air shift: Positive engagement and disengagement
- Two companion flange output types: Versatility for remote pump and mechanical drives
- Seven direct mount pump options: S.A.E. "B," "BB," "C," "D;" and DIN 5462 mounts
- Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
- Weight: 85 lbs.
- Housing construction: Cast iron
- Speed ratios: 8
- Output shaft options: 9
- Rotatable pump flange: Standard
- Assembly arrangements: 2
-
TG and 82 Series PTO Activation for Paccar TX1 / Eaton Endurant TransmissionsIN22-03
-
Muncie Power Continues to Innovate with Product UpdatesWhitney VanKlaveren – Marketing Communications Coordinator
-
PTOs for Eaton Endurant and PACCAR TransmissionWhitney VanKlaveren – Marketing Communications Coordinator
-
Power Take-Offs for the Eaton Endurant Adapts to Your ApplicationKyle Beaty – Digital Marketing Specialist II
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
ASSEMBLY ARRANGEMENTS

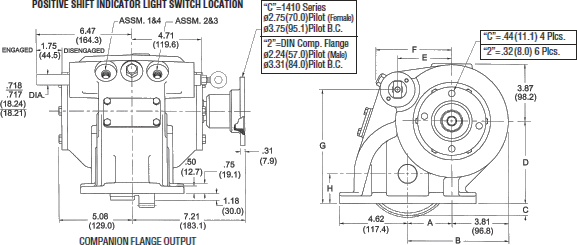

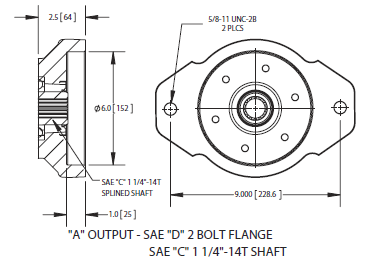

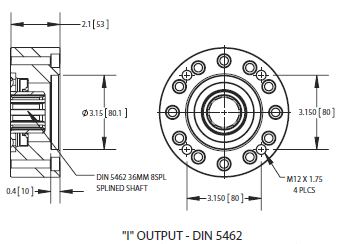

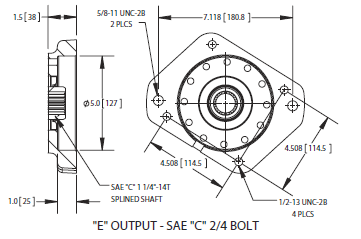

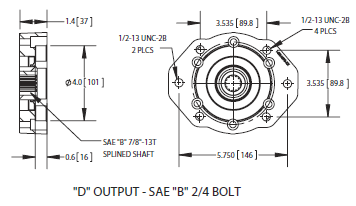

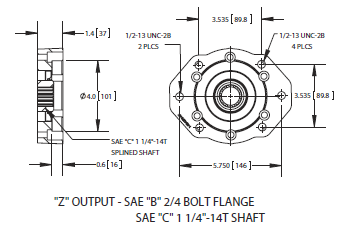

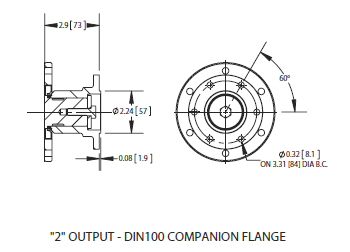

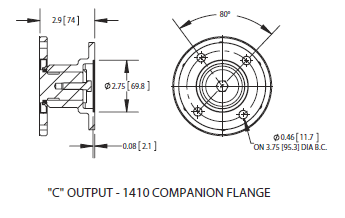

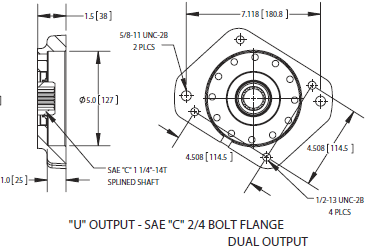

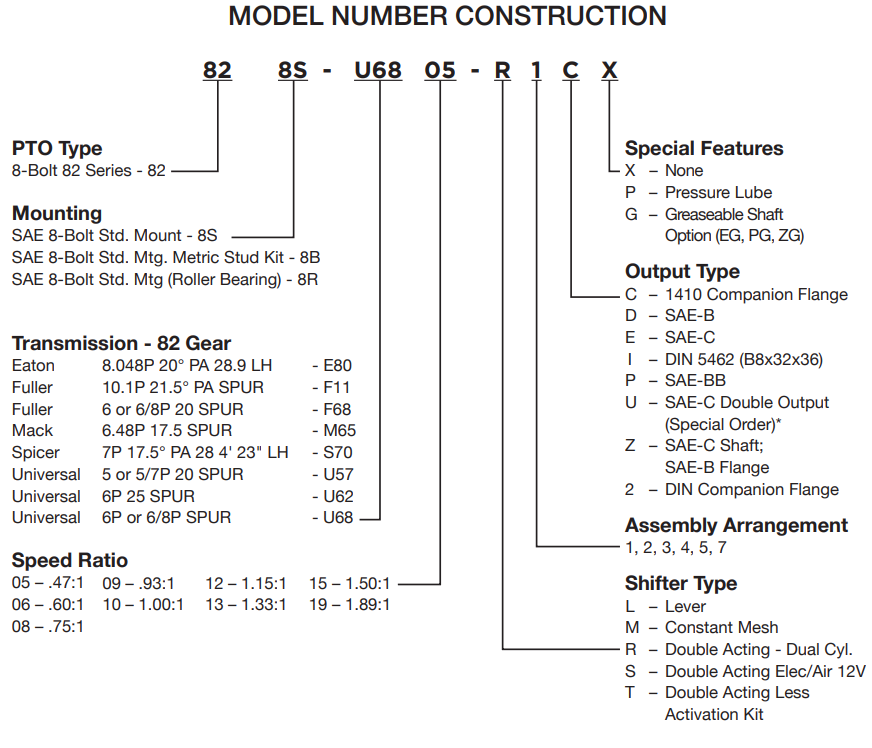

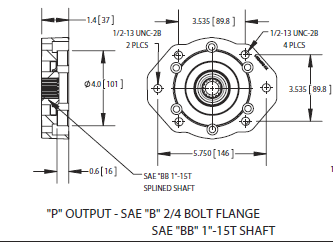

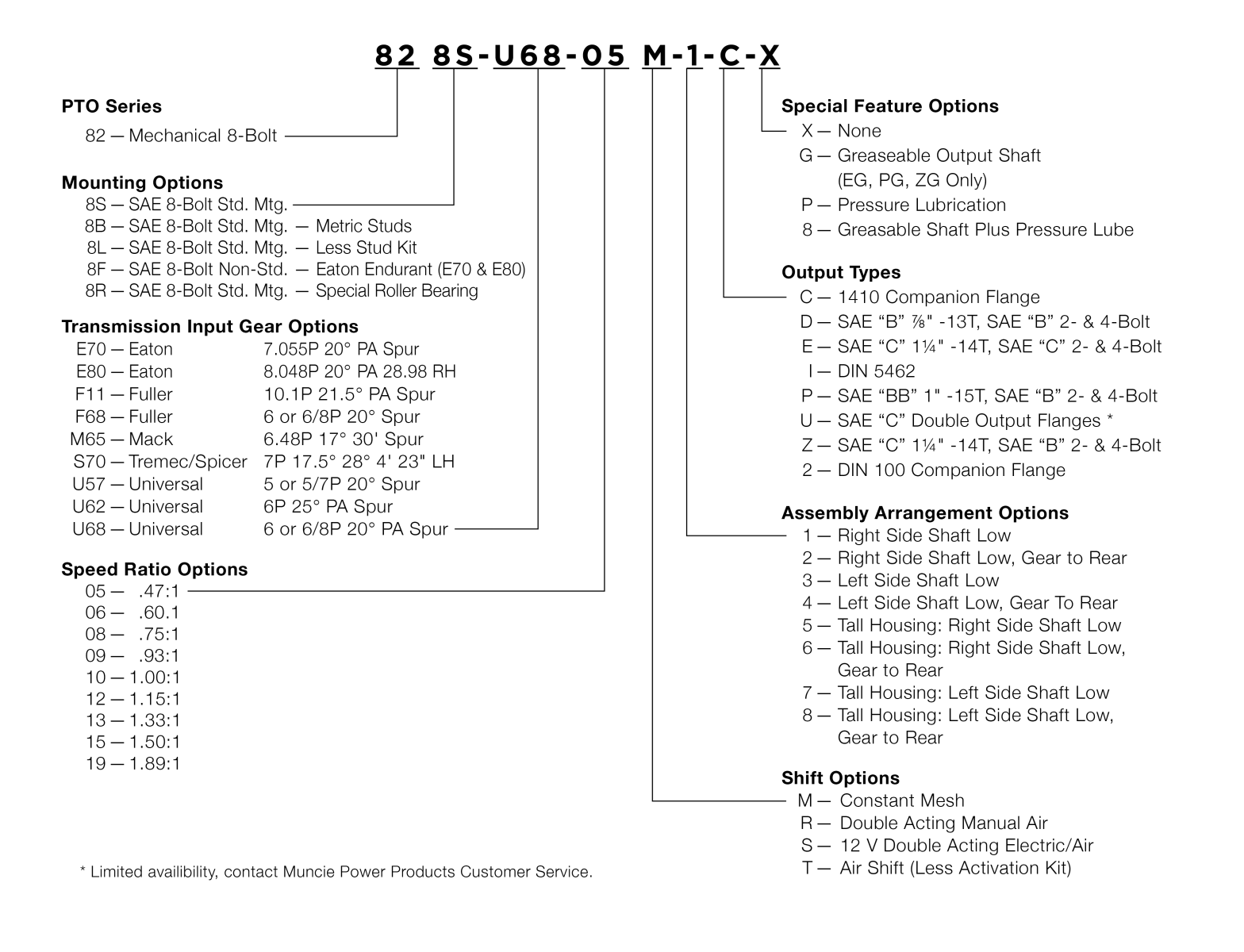

DIMENSIONAL DRAWINGS
