FX Series Bent Axis Piston Pump
Ultimate power and performance in a small package
Muncie Power's bent axis piston pumps are designed for higher operating pressures than traditional gear pumps. All piston pumps mount directly to the power take-off with a standard European DIN 5462 or an ISO 14/UNI 8965 shaft. Complimentary mounts are available on most Muncie Power PTO series.
• Pressures to 6,525 PSI (450 BAR) continuous duty
• 8 standard sizes 4.46–34.37 GPM (16.9–130.1 LPM) @ 1,000 RPM
• Double shaft seals (016–130 cc.)
• Small lightweight design
• Speeds up to 2,300 RPM
• BSPP straight thread
• DIN 5462 4-bolt shaft and flange on all models
• Full one-year warranty
• Complimentary mounts are available on most Muncie Power series PTOs
-
Ultimate Power and Performance in the FX Series Bent Axis Piston PumpBreanna Martinez – Marketing Communications Specialist II

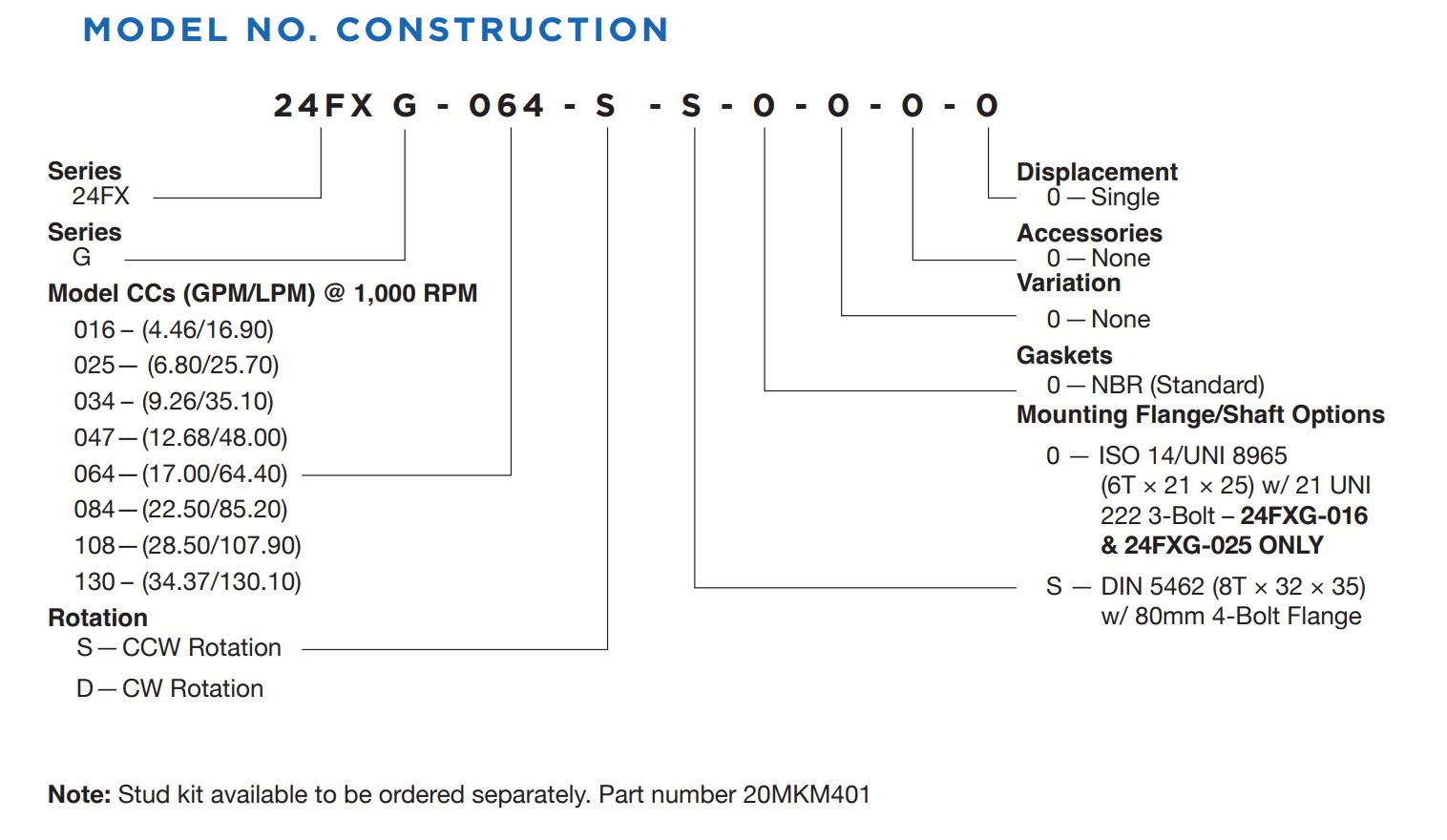

| Model No. | Display Cu In (CC) | Max RPM | Min RPM | Max Cont. PSI (BAR) | Max Inlet Vacuum | Weight lbs (kg) | Inlet Port | Outlet Port | |
| 24FXG-016 | 1.03 (16.9) | 2,300 | 300 | 6,525 (450) | 6 in.Hg. (.20 BAR) | 15.2 (6.9) | 3/4 | 1/2 | |
| 24FXG-025 | 1.57 (25.8) | 2,300 | 300 | 6,525 (450) |
|
15.2 (6.9) | 3/4 | 1/2 | |
| 24FXG-034 | 2.14 (35.1) | 2,300 | 300 | 6,525 (450) |
|
23.1 (10.5) | 1 | 3/4 | |
| 24FXG-047 | 2.93 (48) | 1,900 | 300 | 6,525 (450) |
|
23.1 (10.5) | 1 | 3/4 | |
| 24FXG-067 | 3.92 (64.3) | 1,900 | 300 | 6,525 (450) |
|
29.8 (13.5) | 1 1/4 | 1 | |
| 24FXG-084 | 5.19 (85) | 1,600 | 300 | 5,800 (400) |
|
29.8 (13.5) | 1 1/4 | 1 | |
| 24FXG-108 | 6.59 (108) | 1,500 | 300 | 5,075 (350) |
|
29.8 (13.5) | 1 1/4 | 1 | |
| 24FXG-130 | 7.94 | 1,500 | 300 | 4,350 (300) |
|
39.7 (18) | 1 1/2 | 1 |
Maximum Oil Temperature: 180° F (82° C)
Filter: 10 Micron return line filtration recommended
Approximate Weights: 15.2–39.7 lbs. (6.9–18 Kg.)
Recommended Oil Viscosity: 78–220 SUS (15–46 cSt), 5,000 SSU (1,000 cSt) max. start-up
The Muncie FX Series Piston Pump is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Valve must be used only in accordance with catalogue and package instructions. The Valve is warranted for a period of one year from date of installation. If during the warranty period the Valve fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Warning. The above warranty shall terminate if any alterations or repairs are made to the Valve other than at a Service Center owned by Muncie, or if the Valve is used upon any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
