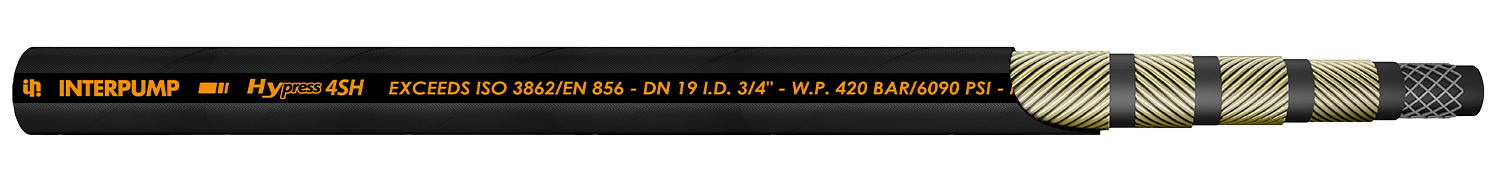

Interpump Hypress 4SH TFDM4SH Hose
APPLICATIONS
- Construction
- Marine & Offshore
- Industrial Hydraulics
- Cranes
- Earth Moving
TYPE APPROVAL
MSHA, ABS, MED, DNV - GL, BV.
APPLICABLE SPECS
EXCEEDS EN 856 4SH - ISO 3862 4SH
Exceeds EN standard. Impulse tested up to 1,000,000 impulse cycles.
Internal hose
Synthetic rubber, extruded whole without joints, of uniform thickness.
Reinforcement
4 steel wire spirals.
Covering
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions. MSHA cover.
Recommended fluid
Petroleum-based hydraulic fluids (mineral oils), glycol-water based, water, lubricants.
Operating temperature
-40°F to +212°F (-40°C to +100°C)
Continuous
-40°F to +248°F (-40°C to +120°C)
Water based fluids
-40°F to +158°F (-40°C to +70°C)
Water
+32°F to +158°F (0°C to +70°C)
-
Understanding the Importance of Minimum Bend Radius in Hydraulic HosesMike Dowling – Field Sales Manager – Fluid Conveyance Products
|
SIZE |
ID |
OD |
MAX WP | MIN BP | MIN BR | WEIGHT | FERRULE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm. | mm. | PSI | BAR | PSI | BAR | in. | mm. | lb. ft. | lg/m | ||
| -12 | 3/4" | 19.0 | 32.0 | 6,090 | 420 | 25,810 | 1,780 | 8.27 | 210 | 1.06 | 1.57 | 004N-12 |
|
-16 |
1" | 25.4 | 38.4 | 5,583 | 384 | 25,375 | 1,750 | 8.66 | 220 | 1.41 | 2.10 | 004N-16 |
|
-20 |
1 1/4" | 31.8 | 45.8 | 5,075 | 350 | 20,300 | 1,400 | 15.75 | 400 | 1.71 | 2.55 | 004N-20 |
| -24 | 1 1/2" | 38.1 | 535 | 4,350 | 300 | 18,125 | 1,250 | 22.05 | 560 | 2.17 | 3.23 | 004N-24 |
| -32 | 2" | 50.8 | 68.0 | 3,625 | 250 | 14,500 | 1,000 | 27.56 | 700 | 3.09 | 4.60 | 004N-32 |
