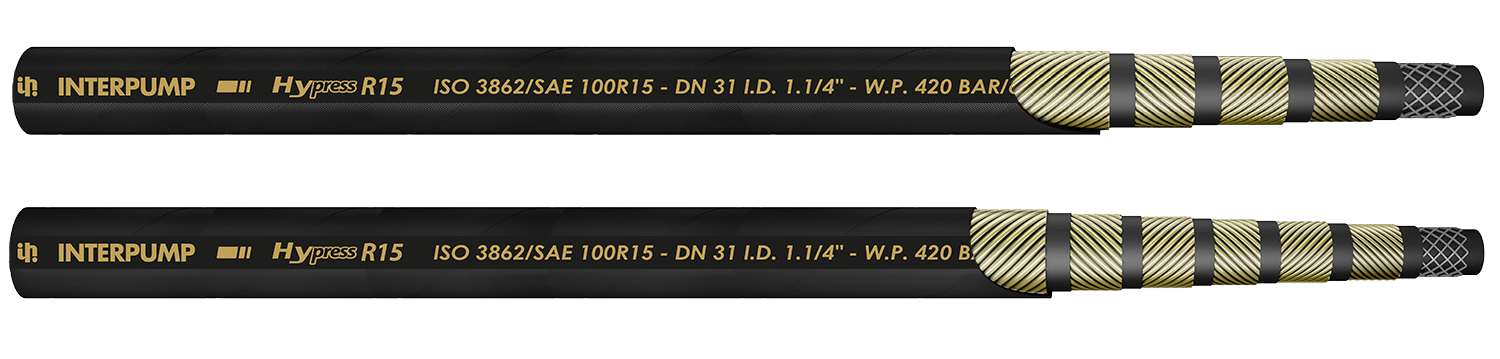

Interpump Hypress R15 TFSM015 Hose
APPLICATIONS
- Construction
- Marine & Offshore
- Industrial Hydraulics
- Mining & Drilling
- Earth Moving
TYPE APPROVAL
MHSA, ABS, BV.
APPLICABLE SPECS
Exceeds SAE 100R15 - ISO 3862 R15
Isobaric line 420 bar/6000 psi - up to 2”. Severe applications where a high abrasion resistance is required.
Internal hose
Synthetic rubber, extruded whole without joints, of uniform thickness.
Reinforcement
4 high tensile steel wire spirals up to size 1”, 6 spirals from size 1 ¼”.
Covering
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.
Recommended fluid
Petroleum-based hydraulic fluids (mineral oils), glycol-water based, water, lubricants
Operating temperature
-40°F to +250°F (-40°C to +121°C)
Continuous
-40°F to +257°F (-40°C to +125°C)
Water base fluids
-40°F to +158°F (-40°C to +70°C)
Water
+32°F to +158°F (0°C to +70°C)
-
Understanding the Importance of Minimum Bend Radius in Hydraulic HosesMike Dowling – Field Sales Manager – Fluid Conveyance Products
|
SIZE |
ID |
OD |
MAX WP | MIN BP | MIN BR | WEIGHT | FERRULE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm. | mm. | PSI | BAR | PSI | BAR | in. | mm. | lb. ft. | lg/m | ||
| -12 | 3/4" | 19.0 | 32.0 | 6,090 | 420 | 25,375 | 1,750 | 8.27 | 210 | 1.06 | 1.57 | 004N-12 |
|
-16 |
1" | 25.4 | 38.7 | 6,090 | 420 | 24,650 | 1,700 | 9.45 | 240 | 1.42 | 2.12 | 0013-16 |
|
-20 |
1 1/4" | 31.8 | 49.7 | 6,090 | 420 | 24,360 | 1,680 | 10.43 | 265 | 2.62 | 3.89 | 0013-20 |
| -24 | 1 1/2" | 38.1 | 57.8 | 6,090 | 420 | 24,360 | 1,680 | 12.21 | 310 | 3.48 | 5.18 | 0013-24 |
| -32 | 2" | 50.8 | 71.5 | 6,090 | 420 | 24,360 | 1,680 | 23.23 | 590 | 4.63 | 6.89 | 0013-32 |
