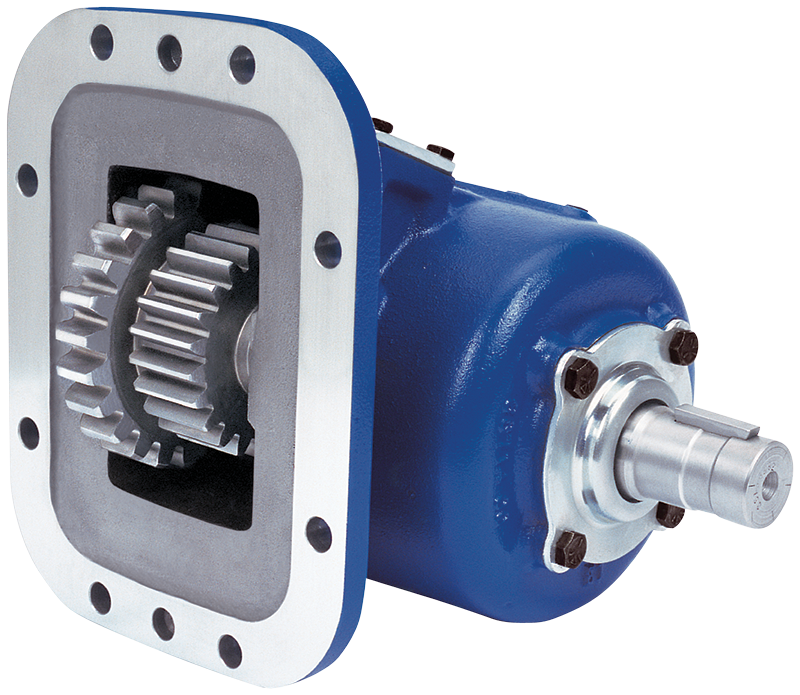

SH Series Power Take-Off
Created to fill the gap between the TG and 82 Series, the SH Series is an air shift only power take-off designed for high torque applications. The SH Series is an easy to mount PTO with an integral air shift design and high torque capacity.
- Integral air shift design: No exposed air cylinder
- High torque capacity: Meets demanding applications
- 17 input gear sets: Fits most popular transmissions
- 6 or 8-bolt cast iron housing: Easy to mount, high strength
- 5 speed ratios: Versatility

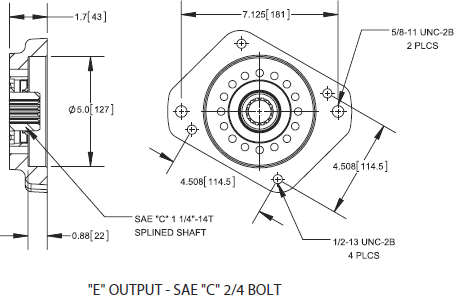

- 12 output shaft options: Fits most popular pump types
-
SH6/8 Series Supplement for EatonFuller UltraShift RTO**910BDM2 TransmissionsIN04-05
-
SH PTO Available for Eaton Endurant and PACCARWhitney VanKlaveren – Marketing Communications Coordinator
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |

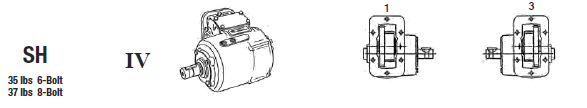

ASSEMBLY ARRANGEMENTS
DIMENSIONAL DRAWINGS
SH6

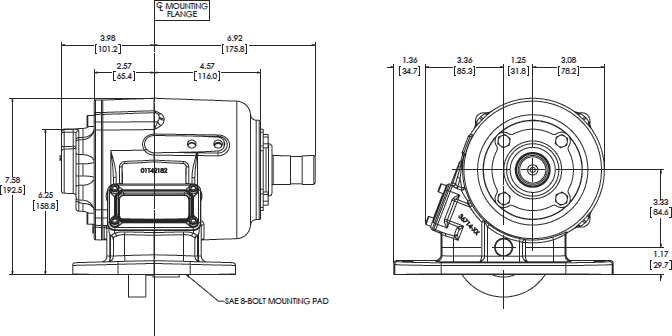

SH8
