EX Drive Shaft Extension
The Muncie EX Drive was designed to fit on Allison 3000 and 4000 series transmissions with retarder or cooler, and allows for large gear or piston pumps to be direct mounted, eliminating the need for timely driveline installations. The EX Drive provides maximum torque from the PTO, and is available for the A20, A30, CD10, CS10/11, CS24/25, and CS40/41 families of PTOs, and is available in SAE B, BB, and C outputs, as well as DIN 5462.
- Fits with Allison 3000/4000 with our without a retarder and with or without a rear mounted cooler
- Wet spline design
- Direct mount large gear or piston pumps
- No need for driveline or front engine drives
- Available for both clutch shift and constant drive PTOs
- Three piece shaft to decrease lead time and reduce cost
- Less complex and stronger to improve its reliability
- Redesign means easier assembly and quicker shipping and delivery
- Steel housing system
- Features a wet spline design to enhance the spline durability for a longer life
-
Introducing New EX Drive Shaft ExtensionWhitney VanKlaveren – Marketing Communications Coordinator
-
How to Identify a Power Take-off and Shaft Extension for Allison 10-Bolt TransmissionsKyle Beaty – Manager of Digital Marketing and Communications

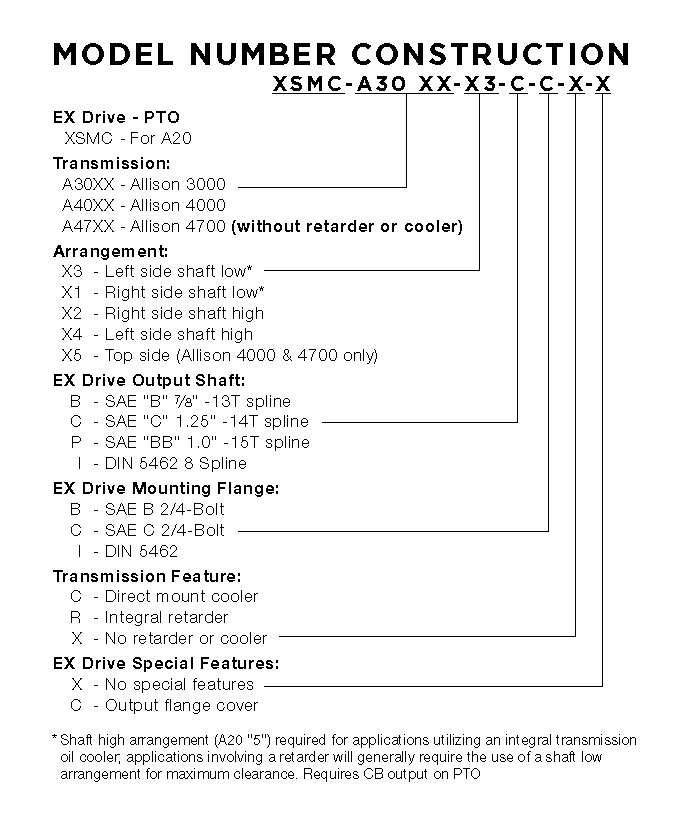

| EX DRIVE WITH A20 PTO TORQUE & HORSEPOWER RATINGS | ||
|---|---|---|
|
Speed Ratio
|
Intermittent/HP (KW) HP@1000 RPM
|
Intermittent/Continious Torque lbs.ft. (NM)
|
| 05 | 77 (57) | 400 (542) |
| 06 | 77 (57) | 400 (542) |
| 07 | 79 (59) | 415 (563) |
| 08 | 69 (51) | 360 (488) |
| 09 | 65 (48) | 340 (461) |
| 10 | 59 (44) | 310 (420) |
| 11 | 52 (39) | 275 (373) |
| 12 | 50 (37) | 265 (359) |
| 15 | 39 (29) | 205 (278) |
| EX DRIVE WITH CD10 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 06 | 73 | 385 | 270 | (54) | (522) | (365) |
| 07 | 68 | 360 | 252 | (51) | (488) | (342) |
| 08 | 64 | 336 | 235 | (48) | (456) | (319) |
| 10 | 59 | 310 | 217 | (44) | (420) | (294) |
| 12 | 50 | 260 | 182 | (37) | (352) | (246) |
| 15 | 43 | 225 | 158 | (32) | (305) | (214) |
| EX DRIVE WITH CS10/11 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
| EX DRIVE WITH CS24/25 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 62 | 325 | 228 | (46) | (440) | (308) |
| 06 | 62 | 325 | 228 | (46) | (440) | (308) |
| 07 | 58 | 305 | 214 | (43) | (414) | (290) |
| 08 | 56 | 295 | 207 | (42) | (400) | (280) |
| 10 | 55 | 290 | 203 | (41) | (393) | (275) |
| 11 | 48 | 250 | 175 | (36) | (338) | (237) |
| 12 | 48 | 250 | 175 | (36) | (338) | (237) |
| 15 | 38 | 200 | 140 | (28) | (271) | (190) |
| EX DRIVE WITH CS40/41 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
