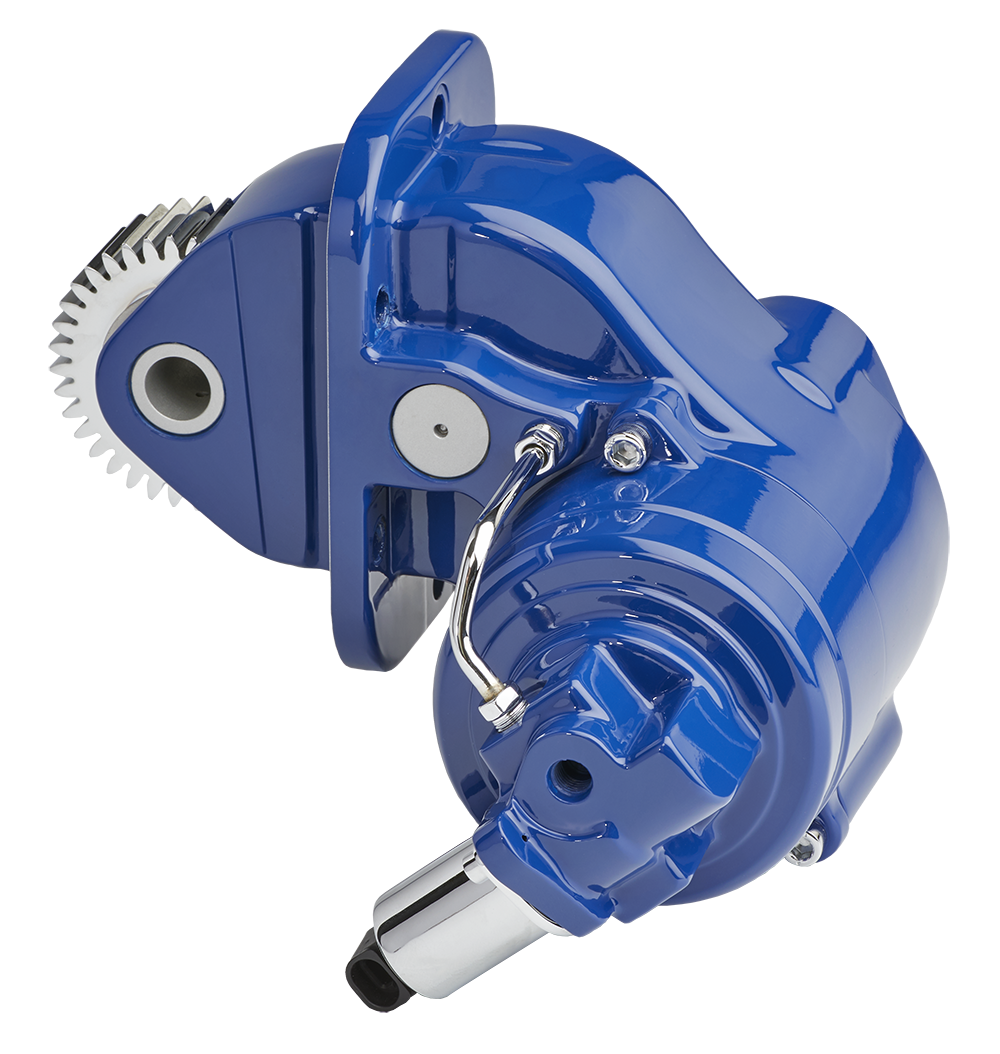

FR6Q Series Power Take-Off

THE QUIET PTO SOLUTION FOR FORD

Muncie Power Products’ quiet, FR6Q Series power take-off is designed to fit Ford Super Duty trucks, F-350 to F-550, with the Ford 6R140 transmission. Featuring the latest in noise reduction technology, the FR6Q encompasses a noise abatement mechanism that eliminates virtually all gear rattle noise for a quiet power take-off.

Note: Replaces the FR66 Series



Available with the new Muncie Start

The Muncie Start is an electronically controlled, modulated clutch engagement system from Muncie Power Products that eliminates torque spikes through the power take-off, truck drivetrain and mounted auxiliary equipment upon startup for high-inertia loads. Allowing for a smooth engagement of the power take-off, Muncie Start increases the life of the PTO and driven mechanical components.

• Fits 4X2 and 4X4 Ford Super Duty trucks, F-350 to F-550, with the Ford 6R140 transmission (may also be used on F-650 and F-750 trucks)

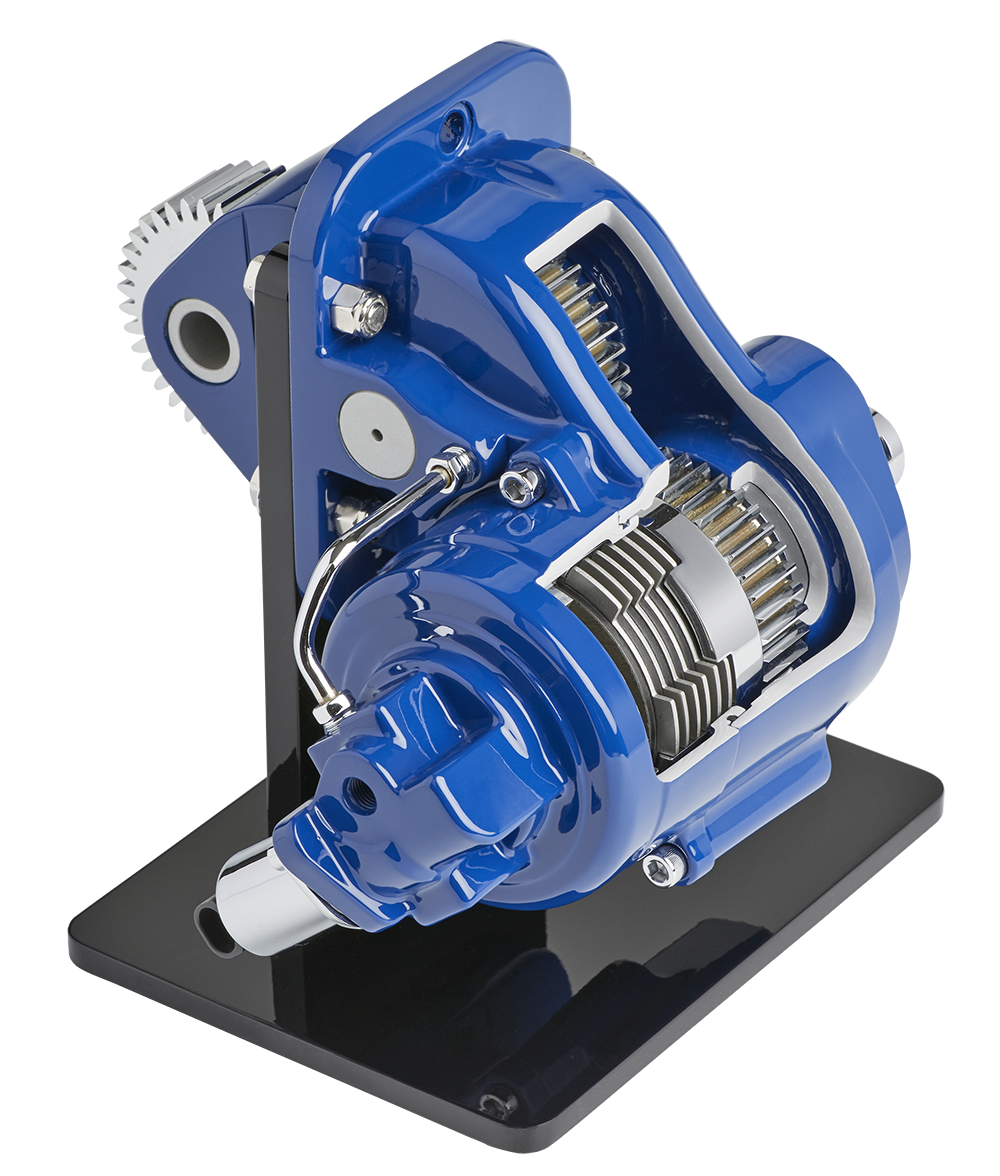

• Noise abatement mechanism eliminates virtually all gear rattle noise for a quiet PTO
• Solenoid activated
• Preconfigured wiring harness
• One-piece installation with rocker

Brochure
Installation Instructions
  • Electrical Connections for 6R140 Ford Transmissions
    IN18-02
Service Parts Manual
  • Hydraulic Pumps for Power Take-offs on Ford Trucks
    Andrew Dawson – Manager of Marketing and Advertising
  • Revealing the Quiet PTO Solution for Ford
    Whitney VanKlaveren – Marketing Communications Coordinator
  • The New, Quiet FR6Q PTO Is Here
    Whitney VanKlaveren – Marketing Communications Coordinator
  • Click, Clack, Clatter: Why is My PTO Making Noise?
    Jim Abbott – Product Planning and Application Engineer
  • Introducing Muncie Start
    Whitney VanKlaveren – Marketing Communications Coordinator
  • How Quiet Is Quiet?
    Whitney VanKlaveren – Marketing Communications Coordinator
  • The Start of Something – Muncie Start
    Jim Abbott – Product Planning and Application Engineer
  • Power Take-offs for Ford Transmissions: Specifications, Applications, and What to Expect
    Kyle Beaty – Digital Marketing Specialist II
  • Power Take-off Installation made Simple with Wire Harness for Ford Trucks
    Kyle Beaty – Digital Marketing Specialist II
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
Weight

(09)

Stationary

39 200 140 (29) (271) (190) 35 lbs. (15.9 Kg.)

(09)

Mobile

22 *120 120 (16) (162) (162) 35 lbs. (15.9 Kg.)
*FR6Q limit in mobile applications continuous intermittent

The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.



THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.



If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
