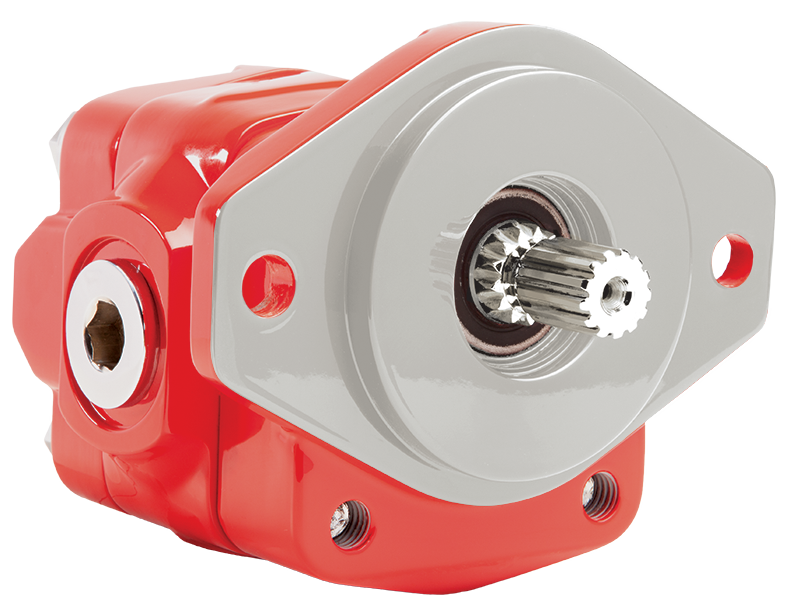

PK Series Gear Pump
The PK Series is designed to meet the application needs of either a pump or a motor. All cast iron construction with 4 ports and roller bearing design. The pumps bi-rotational feature helps reduce inventory requirements.
- 7 pump sizes (4, 6, 8, 11, 13, 15, 17 GPM @ 1000 RPM): Fit a wide variety of applications
- Pressure to 3000 PSI: High pressure capability
- Speeds to 3600 RPM: Application versatility
- All cast iron construction: Long life, capable of high PSI
- Solid, one piece shafts: Stronger
- Versatile 4-port design: Installation flexibility
- Heavy duty roller bearings: Long product life
- 4 shaft types & 5 mounting flanges (pump or motor): Optimum Flexibility
*Note: PKS is not available as a motor
-
Pump Support Bracket Implementation and DesignJim Abbott – Product Planning and Application Engineer
-
Patented Quiet Technology featured in the F22 Series PTO for new Ford F-650 and F-750 Diesel TrucksJim Abbott – Product Planning and Application Engineer
-
Hydraulic Pumps for Power Take-offs on Ford TrucksAndrew Dawson – Manager of Marketing and Advertising
| Model | Displ. in3 (cc) | MAX RPM* | MIN RPM | MAX Pres. PSI (Bar) | Approx Wt. lbs. (kg) |
| PK104 | 0.98 (16) | 3600 | 600 | 3000 (207) | 26.5 (12.1) |
| PK106 | 1.47 (24) | 3600 | 600 | 3000 (207) | 27.8 (12.6) |
| PK108 | 1.97 (32) | 3000 | 600 | 3000 (207) | 29.0 (13.1) |
| PK111 | 2.46 (40) | 3000 | 600 | 3000 (207) | 30.3 (13.8) |
| PK113 | 2.96 (48) | 2500 | 600 | 3000 (207) | 31.6 (14.3) |
| PK115 | 3.45 (57) | 2500 | 600 | 2500 (172) | 33.0 (15.0) |
| PK117 | 3.94 (65) | 2500 | 600 | 2500 (172) | 34.1 (15.5) |
| *PKS pumps available with short front cover | |||||
The Muncie Cast Iron/Roller Bearing Pump/Motor Series PK or PL is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Pump/Motor must be used only in accordance with catalog and package instructions.
The Pump/Motor is warranted for a period of one year from the date of installation. If during the warranty period the Pump/Motor fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
WARNING. The above warranty shall terminate if any alterations or repairs are made to the Pump/Motor other than at a Service Center owned by Muncie, or if the Pump/Motor is used on any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED, AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND THE BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY WILL UNDER NO CIRCUMSTANCES EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.

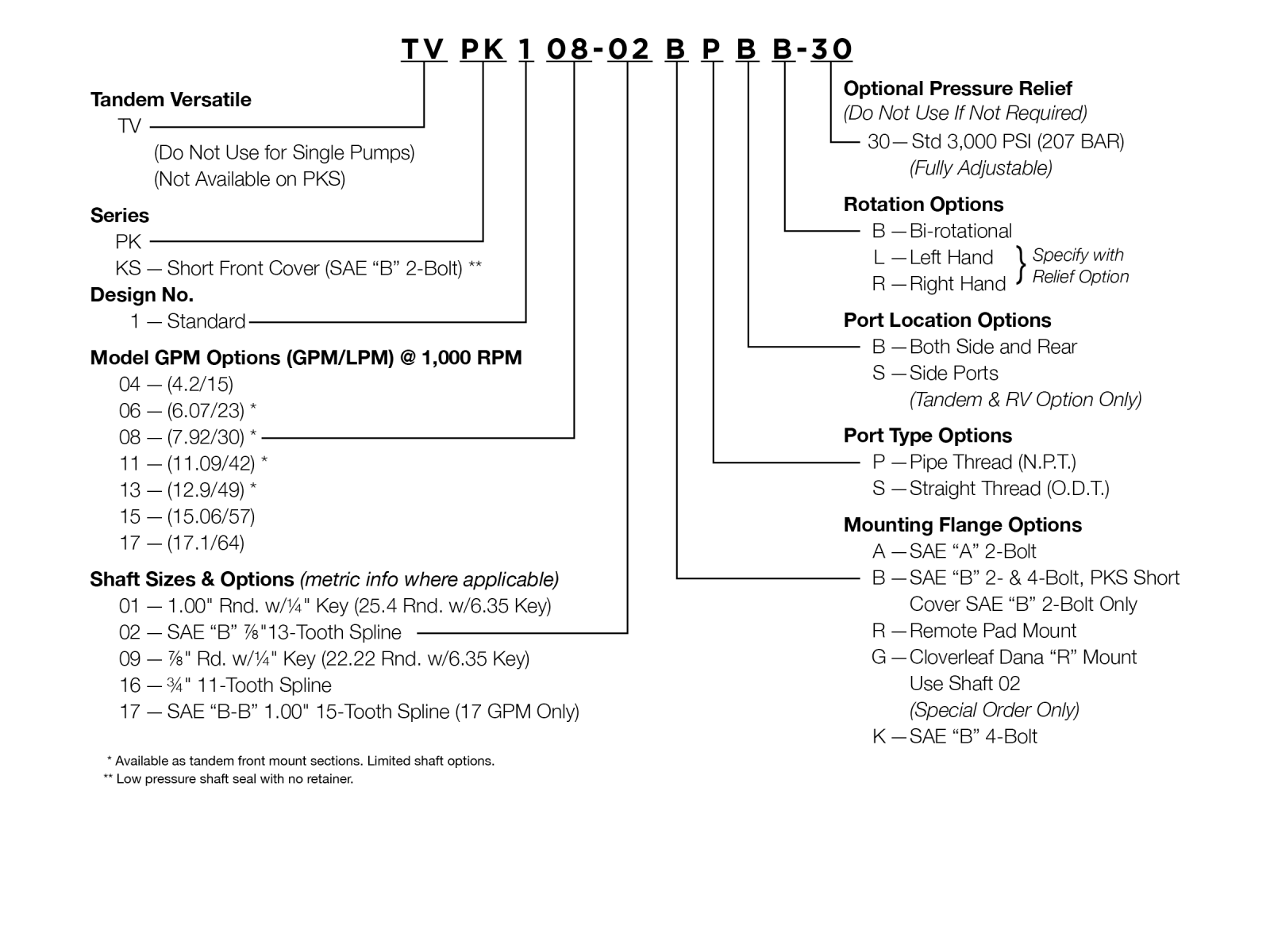

MODEL NUMBER CONSTRUCTION
