PTO Shaft Extensions
This series is an obsolete product. This page is used for reference material only.

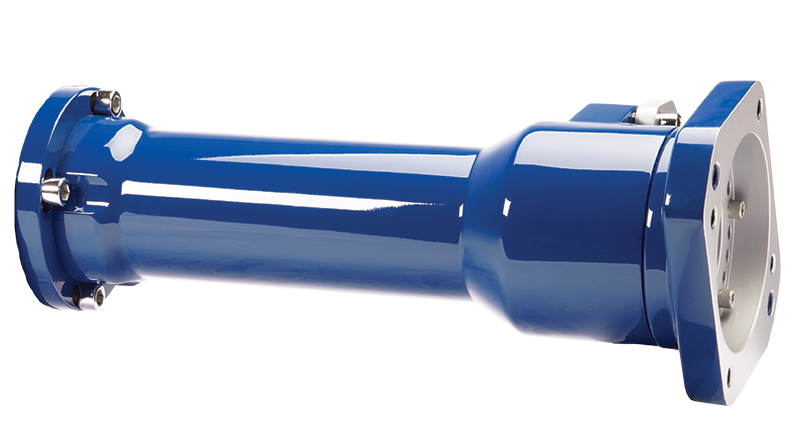

Muncie’s PTO shaft extensions for the Allison 3000 and 4000 Series transmission provide easier hydraulic pump installation by moving the hydraulic pump mount to the rear of the transmission. Shaft Extensions are available for most Allison 3000 & 4000 Series transmission applications and popular pump mounts.
- Fits Allison 3000 and 4000 series transmissions - Popular automatic transmissions
- Direct mounts large gear or piston pumps - Replaces driveline; Cuts installation time
- Replaces front engine drives - Eliminates the cost of front mounting; Improved performance - the pump is located closer to the oil supply
- Locates the pump under the truck - Safer location
- Four output sizes - S.A.E. "B", "BB", "C", and DIN 5462 - Fits popular pump models
- Weight: 42 lbs.
- Maximum Pump Weight: * 111 lbs.
- Maximum Torque (intermittent): 500 lb. ft.
- Output Shaft Options: S.A.E. "B" S.A.E. "BB" S.A.E. "C" DIN 5462
- Rotatable Pump Mount Flange: Yes
| WITH CD10 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 06 | 73 | 385 | 270 | (54) | (522) | (365) |
| 07 | 68 | 360 | 252 | (51) | (488) | (342) |
| 08 | 64 | 336 | 235 | (48) | (456) | (319) |
| 10 | 59 | 310 | 217 | (44) | (420) | (294) |
| 12 | 50 | 260 | 182 | (37) | (352) | (246) |
| 15 | 43 | 225 | 158 | (32) | (305) | (214) |
| WITH CS10/11 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
| WITH CS24/25 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 62 | 325 | 228 | (46) | (440) | (308) |
| 06 | 62 | 325 | 228 | (46) | (440) | (308) |
| 07 | 58 | 305 | 214 | (43) | (414) | (290) |
| 08 | 56 | 295 | 207 | (42) | (400) | (280) |
| 10 | 55 | 290 | 203 | (41) | (393) | (275) |
| 11 | 48 | 250 | 175 | (36) | (338) | (237) |
| 12 | 48 | 250 | 175 | (36) | (338) | (237) |
| 15 | 38 | 200 | 140 | (28) | (271) | (190) |
| WITH CS40/41 PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
