Steel Box Reservoirs

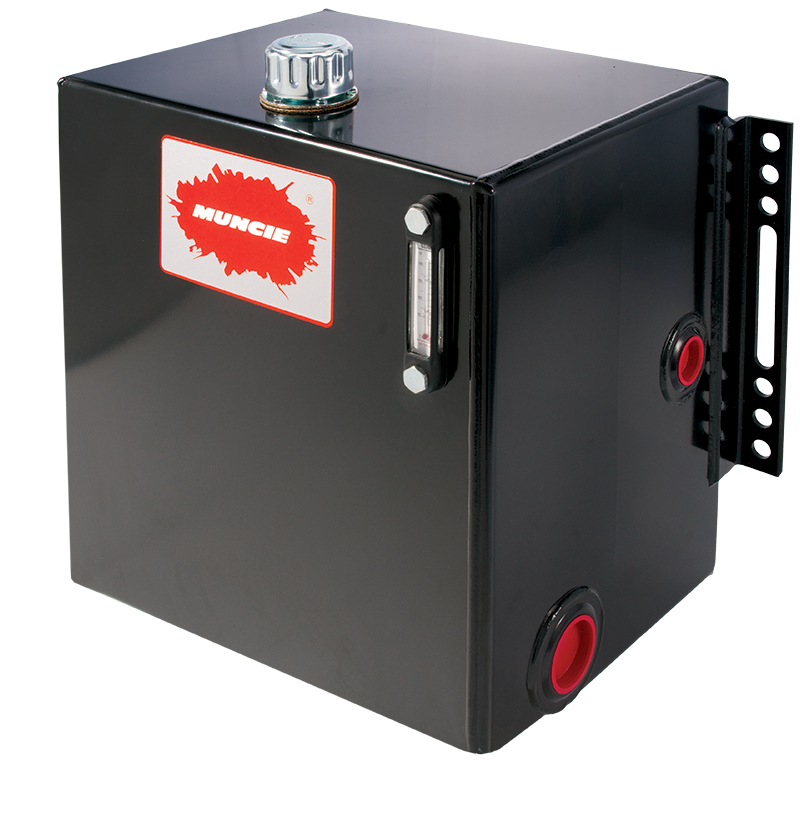

Muncie steel box reservoirs are offered in a large variety of sizes from compact to midsize models, providing a wide range of product diversity. Our reservoirs feature multiple return ports and are designed for easy installation by utilizing welded mounting rails with punched holes. They are also designed for intermittent or continuous duty applications that may generate significant amounts of heat, and other applications where a metal reservoir is preferred.

  • Available steel reservoirs: Most durable choice for continuous applications
  • Return line diffusers (slow the speed of returning oil): Helps prevent aeration, promotes settling of contaminants
Brochure
Service Parts Manual
  • Installation Instructions for 7/10/15/25/35/40 gallon steel box side mount tanks
    SP13-02
  • Hydraulic Reservoirs: Customized for You
    Whitney Rodeffer – Marketing Communications Coordinator
  • Comprehensive Line of Premium Quality Hydraulic Reservoirs
    Whitney VanKlaveren – Marketing Communications Coordinator
  • Custom hydraulic reservoirs for your application needs
    Steve McElroy – Director of Business Development

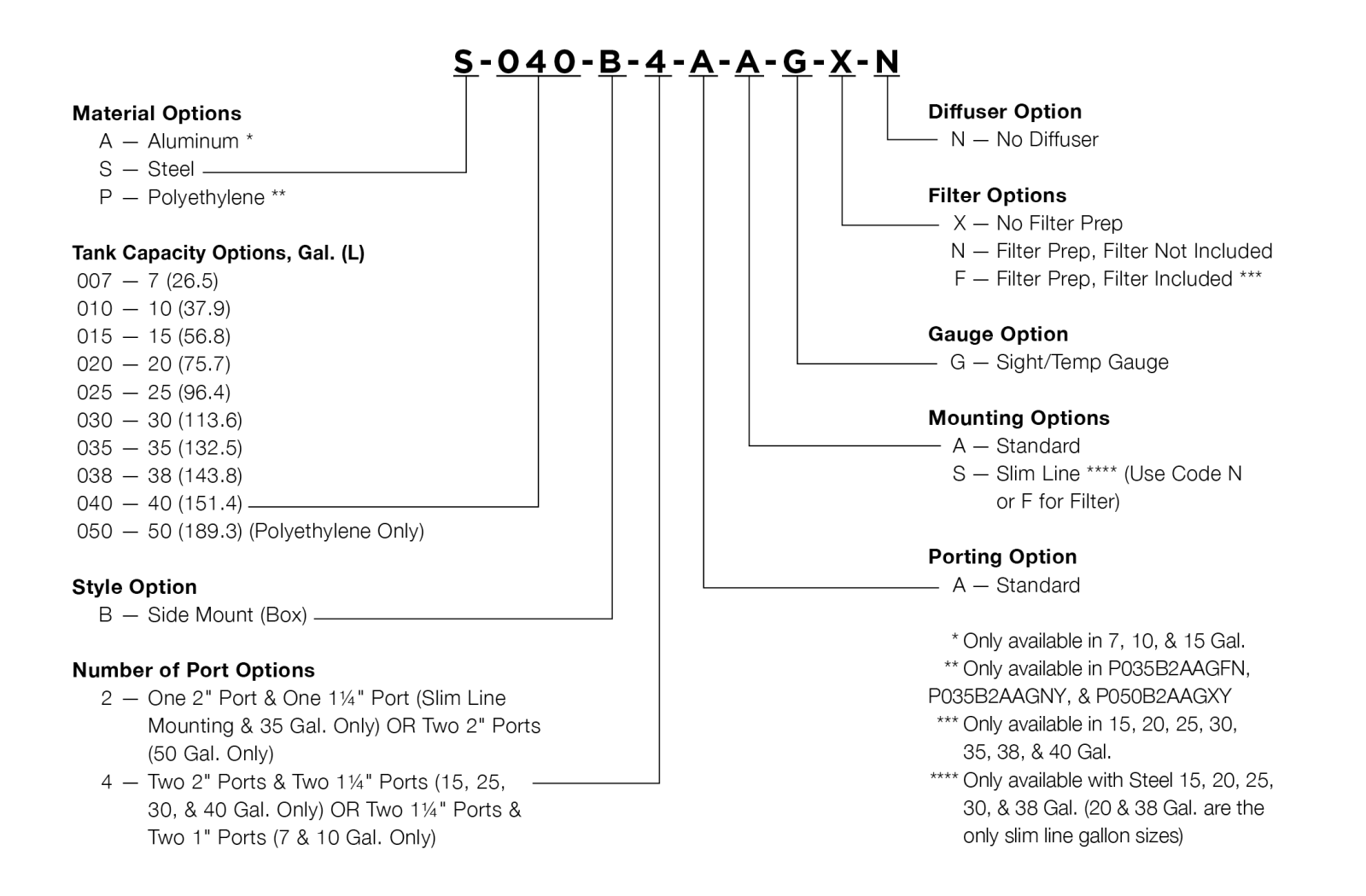

STEEL BOX RESERVOIR MODELS
Model
Volume
Ports
Filter
Dimensions
Weight
S007B4AAGXN 7 GAL. 4 - 12"L X 12"W X 12"H 40 LBS
S010B4AAGXN 10 GAL. 4 - 12"L X 14"W X 14"H 45 LBS
S015B4AAGXN 15 GAL. 4 - 15.5"L X 13.5"W X 17.5"H 62 LBS
S025B4AAGXN 25 GAL. 4 - 20"L X 14.75"W X 20"H 84 LBS
S035B2AAGFN 35 GAL. 2 STND. 18.25"L X 20"W X 22"H 112 LBS
S035B2AAGNN 35 GAL. 2 OPT. 18.25"L X 20"W X 22"H 105 LBS
S040B4AAGXN 40 GAL. 4 - 32"L X 14.75"W X 20"H 126 LBS
Notes: 1.15, 25, and 40 gallon tanks have two 2” NPT ports and two 1-1/4” NPT ports. 2. 35 gallon tank, supply port is 2” NPT and the return port is 1-1/4” NPT. 3. 7 and 10 gallon tanks have two 1” NPT ports and two 1-1/4” NPT ports.

The Muncie aluminum or steel hydraulic oil reservoir is warranted for one year from the time it is first installed upon the equipment against any defect in material and workmanship that causes the reservoir to fail to hold oil which existed when sold by Muncie, according to the following provisions, subject to the requirements that the reservoir must be used only in accordance with catalog and package instructions. If the defective part is returned to Muncie with transportation prepaid, the defective part will be repaired or replaced, at Muncie’s election.

The above warranties shall terminate if any alterations or repairs are made to the product other than at a service center owned by Muncie, or if the product is used on any equipment other than the equipment upon which it is first installed.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESS OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
