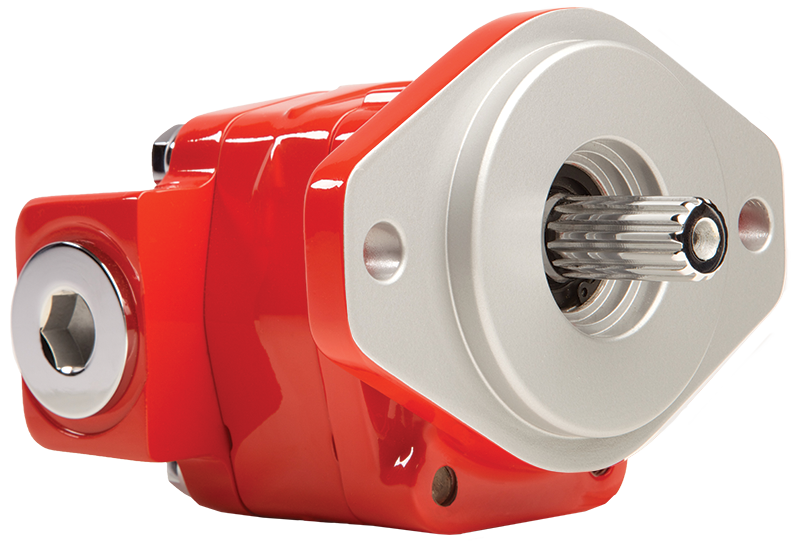

PH Series Gear Pump
The PH Series is an all cast iron gear pump designed for low to medium flow systems. Its small package size makes it ideal for direct mounting to PTOs.
- 6 pump sizes (3, 5, 7, 8, 9, 11 GPM @1000 RPM): Fit a wide variety of applications
- Pressure to 3500 PSI: High pressure capability
- Speeds to 3500 RPM: Application versatility
- All cast iron construction: Long life, capable of high PSI
- Solid, one piece shafts: Stronger
- Pressure balanced wear plates: High efficiency
- Long life bushings: Long life
- Side or rear porting: Installation flexibility
-
Pump Support Bracket Implementation and DesignJim Abbott – Product Planning and Application Engineer
-
Patented Quiet Technology featured in the F22 Series PTO for new Ford F-650 and F-750 Diesel TrucksJim Abbott – Product Planning and Application Engineer
-
Hydraulic Pumps for Power Take-offs on Ford TrucksAndrew Dawson – Manager of Marketing and Advertising
| PUMP SPECIFICATIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Displacement in3 (CC) | MAX* RPM |
MIN* RPM |
MAX Pres. PSI (BAR) | DIM A | DIM B | MAX Oil Temp | MAX Inlet Vacuum | Weight lbs. (Kg) |
| PH1-03 | 0.62 (10.2) | 4000 | 1000 | 3500 (241) | 7.37 (187.20) | 0.90 (22.9) | 200°F (93°C) | 5 in.HG. (.17 BAR) | 18 (8.3) |
| PH1-05 | 1.24 (20.3) | 4000 | 800 | 3500 (241) | 7.87 (199.90) | 1.40 (35.6) | 200°F (93°C) | 5 in.HG. (.17 BAR) | 20 (9.0) |
|
PH1-07 |
1.55 (25.4) | 3600 | 800 | 3500 (241) | 8.12 (206.25) | 1.65 (41.9) | 200°F (93°C) | 5 in.HG. (.17 BAR) | 21 (9.3) |
|
PH1-08 |
1.86 (30.5) | 3600 | 800 | 3250 (224) | 8.37 (212.60) | 1.90 (48.2) | 200°F (93°C) | 5 in.HG. (.17 BAR) | 22 (10.1) |
|
PH1-09 |
2.17 (35.6) | 3000 | 800 | 2900 (200) | 8.62 (218.95) | 2.15 (54.6) | 200°F (93°C) | 5 in.HG. (.17 BAR) | 24 (10.7) |
|
PH1-11 |
2.48 (40.6) | 3000 | 800 | 2500 (172) | 8.86 (225.04) | 2.40 (61.0) | 200°F (93°C) | 5 in.HG. (.17 BAR) | 25 (11.3) |
|
Notes: Care must be made in selecting the proper pump size vs. the priority flow setting to prevent hydraulic energy loss and added heat load to the system. |
|||||||||
The Muncie PH Series Gear Pump is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Pump must be used only in accordance with catalogue and package instructions.
The Pump is warranted for a period of one year from date of installation. If during the warranty period the Pump fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Warning. The above warranty shall terminate if any alterations or repairs are made to the Pump other than at a Service Center owned by Muncie, or if the Pump is used upon any equipment other than the equipment upon which it is first installed.
As to any PH Series Gear Pump which is rebuilt and retested at a Service Center owned by Muncie, the period of the above warranty is extended for a period of one additional year from the retest date.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
MODEL NUMBER CONSTRUCTION
