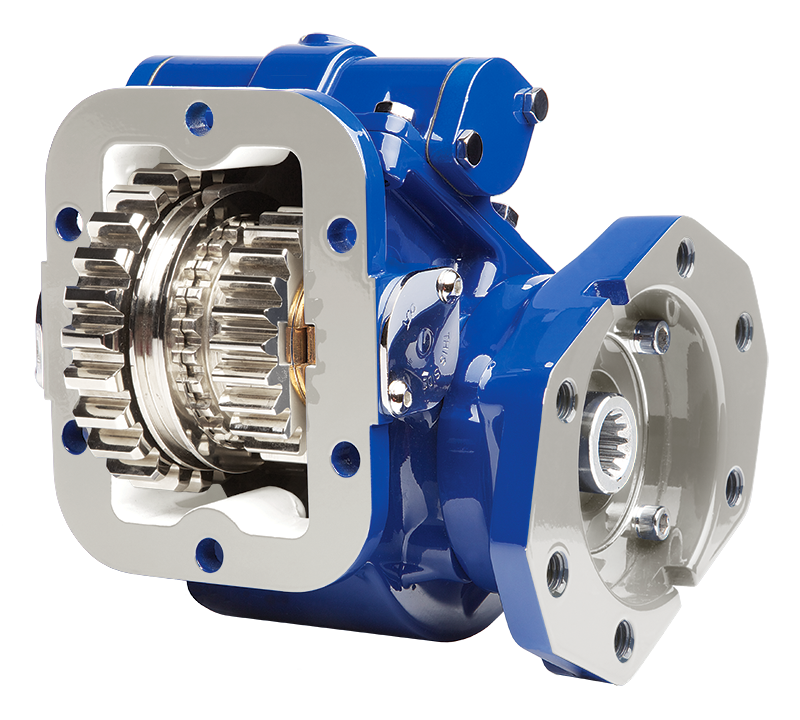

TG Series Power Take-Off

As the most versatile and widely used double-gear type power take-off in the industry, the TG Series is available with 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears for all popular transmissions. The TG Series PTO can be configured to meet the speed, torque, and horsepower requirements of most applications.

  • Die-cast aluminum housing: Reduces weight and noise, with superior heat dissipation
  • 6 or 8-bolt housing: For simplified installation
  • Modular design: Provides flexibility and ease of repair
  • Constant mesh input gear: Isolates transmission from engagement errors
  • Compact size: Minimizes mounting interference
  • Electric/hydraulic shift option: Eliminates the need for shift cables
  • Extra large shift cover opening: Allows easy access to check backlash
  • Rotatable hydraulic flanges: Maximizes pump clearance
Brochure
Installation Instructions
  • Eaton Endurant / Paccar PTO Activation - TG Series
    IN17-12
  • Eaton Endurant / Paccar PTO Installation - TG Series
    IN17-11
  • Installation and Owners Manual for 6 and 8 bolt PTOs
    IN84-03
  • TG and 82 Series PTO Activation for Paccar TX1 / Eaton Endurant Transmissions
    IN22-03
  • TG Heavy Duty Cable Shift Installation Instructions
    IN85-04
  • TG PTO Installation Instructions on GM Pickup with Allison 1000
    IN01-05
  • TG Series Supplement for EatonFuller UltraShift RTO**910BDM2 Transmissions
    IN04-05
Service Parts Manual
Troubleshooting Guide
  • PTOs for Eaton Endurant and PACCAR Transmission
    Whitney VanKlaveren – Marketing Communications Coordinator
  • A Cooperative Design Effort
    Whitney VanKlaveren – Marketing Communications Coordinator
  • Versatile PTO Options for Eaton Transmission
    Whitney VanKlaveren – Marketing Communications Coordinator
  • Durable Design and Proven Results: The Best PTO Fit For Your Allison 1000/2000 RDS Transmission
    Kyle Beaty – Digital Marketing Specialist II
  • Importance of properly torquing your PTO
    Sean Woodman – Field Sales Manager
  • Power Take-Offs for the Eaton Endurant Adapts to Your Application
    Kyle Beaty – Digital Marketing Specialist II
  • The TG Series PTO: A tried-and-true solution for most vocational applications
    Skylar Furney – Field Sales Manager
PTO TORQUE & HORSEPOWER RATINGS

Speed Ratio

Intermittent HP@1000 RPM

Intermittent Torque lbs.ft.

Continuous Torque lbs.ft.

Intermittent (kw)@1000 RPM

Intermittent Torque (NM)

Continuous Torque (NM)

04 54 285 200 (40) (386) (270)
05 51 270 189 (38) (366) (256)
06 47 245 172 (35) (332) (232)
07 44 230 161 (33) (312) (218)
08 44 230 161 (33) (312) (218)
09 39 205 144 (29) (278) (195)
12H 40 210 147 (30) (284) (199)
13H 40 210 147 (30) (284) (199)
15H 37 195 137 (28) (264) (185)
18H 33 175 123 (25) (237) (166)

Approximate Weight: 22 lbs. (10.0 Kg.)

The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.

If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.

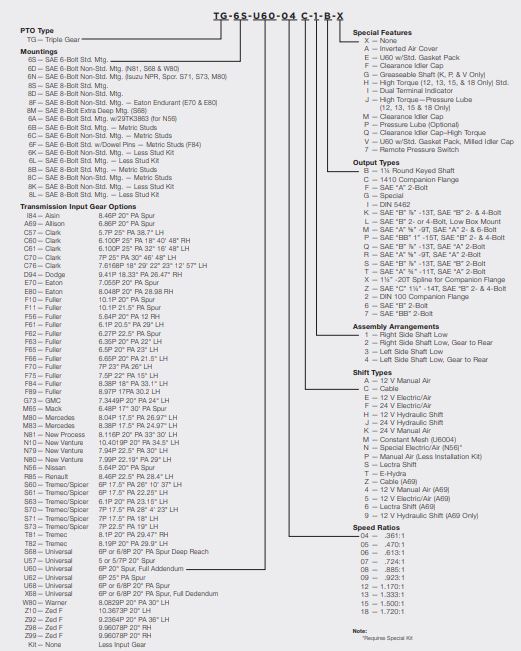

MODEL NUMBER CONSTRUCTION
