Construction

Designed for Allison 3000 & 4000 Series Transmissions

The A30 Series is a 10-bolt medium-duty, constant drive PTO rated for up to 415 lbs.ft. torque intermittent/continuous and features various product improvements allowing for easier installation and a more durable PTO for Allison 3000 and 4000 Series transmissions.

ROTATABLE PUMP FLANGE

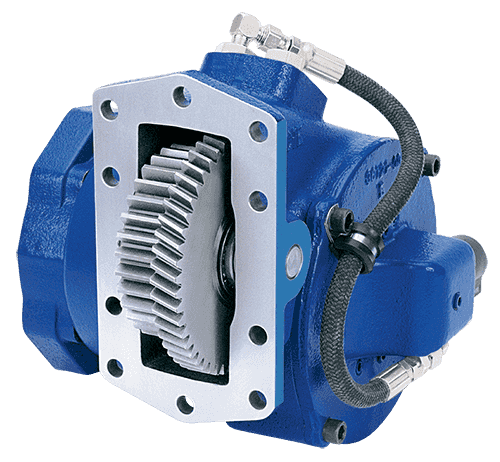

Constructed with large gears, the CS10 Series PTO is built for heavy duty applications. The CS10 features a drag brake and an output shaft designed around popular hydraulic pumps. For a more compact installation, the CS11 is a remotely mounted solenoid option.

The CS24/24 is an obsolete product. This page is used for reference material only.

Designed with the same technology as the CS10 Series, the CS24 Series PTO is 20 percent smaller. CS PTOs are engaged by means of a direct mounted solenoid, which activates an internal wet clutch pack. With this feature, installation is made simple with a single hose connection

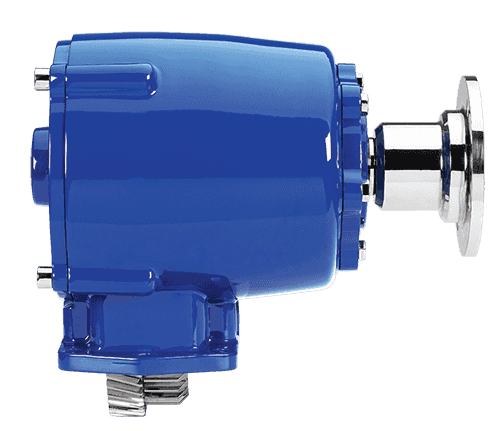

When you need the max power from an Allison 3000 or 4000 and Caterpillar CX transmission, the CS40/41 Series power take-off delivers. Constructed with the widest gears possible, the CS40/41 is built for maximum strength, noise reduction, durability and the highest output torque rating available.

Designed to work on Allison 1000 and 2000 series automatics and many other current manual transmissions, the CS6/8 Series PTOs offer direct mount pump options and a drag brake. Upgrading to a multi-disk clutch brake allows for absolute shaft stoppage.

24V and 12 Volt DC Power Packs can be used to provide hydraulic power for light duty applications

The FR3C is an obsolete product. This page is used for reference material only.

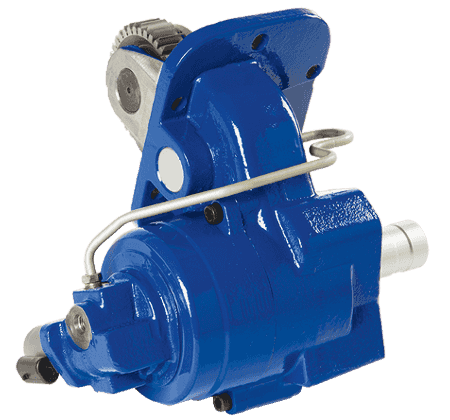

Muncie Power's FR3C power take-off gives you the maximum torque available from the Ford Torqshift transmission with a keyed shaft output.

2016 (Built after Jan. 6) F650-F750 (Diesel) with 6R140

The FR66 is an obsolete product. This page is used for reference material only.

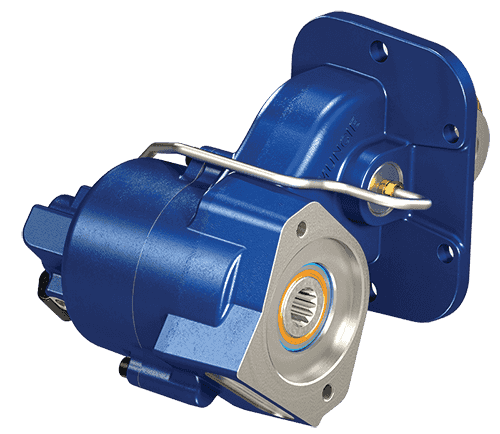

Muncie’s updated FR66 power take-off gives you the versatility of mounting larger hydraulic pumps to handle a variety of heavy duty jobs. Our PTO utilizes a one-piece housing design with forced lubrication for increased durability and simplified installation. The FR66 incorporates integral mobile or stationary functions and a higher torque capacity of 200 lbs.ft.

2011-Present F250-F550 (Diesel) with 6R140
2017-Present F250-F550 (Gas) with 6R140
2016-Present F650-F750 (Diesel) with 6R140
2013-Present F650-F750 (Gas) with 6R140

Muncie's metal round reservoirs are available in both aluminum and steel and are designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal reservoir is preferred.

Muncie offers metal upright tanks available in both aluminum and steel. Aluminum reservoirs are offered when weight, appearance and performance are important, while steel is the preferred solution when quality and dependability are required. Our premium quality reservoir is designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal tank is preferred.

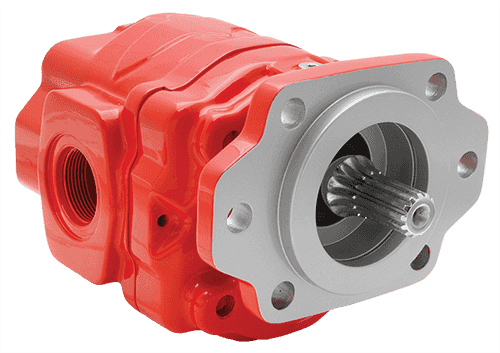

The Optimum W Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip^® technology, the Optimum W Series exemplifies strength, endurance and rigidity making for long lasting units even in the most extreme conditions. The W Series is the smallest range of the Optimum group, providing 8 displacements to cover low flow, higher pressure requirements.

*Flow rates are theoretical.

The Optimum X Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip^® technology, the Optimum X Series exemplifies strength, endurance, and rigidity making for long lasting units even in the most extreme conditions. The X Series is the middle range of the Optimum group, providing nine displacements to cover light to heavy flow and pressure requirements.

*Flow rates are theoretical.

Ultimate power and performance in a small package best describes the PF4 Series gear pumps. The pressure balanced bushing blocks and sleeve bearings provide both long life and high performance.

*Flow rates are theoretical.

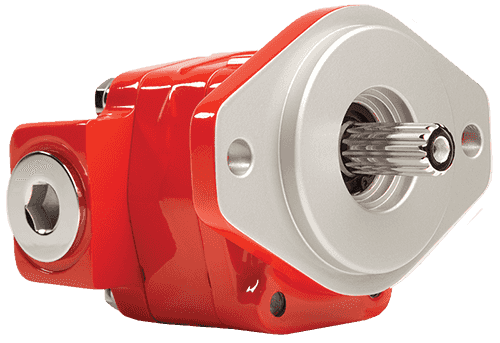

The PH Series is an all cast iron bushing style gear pump with displacements from .62 to 2.48 cu. in./rev.

*Flow rates are theoretical.

The combination of strict machining tolerances, solid stop contact faces, and larger overlap between the stages has resulted in one of the strongest and most stable cylinder columns currently available on the market. These improvements help to increase safety for dumping applications, helping to prevent accidents due to vehicle roll-over.

The PK Series is designed to meet the application needs of either a pump or a motor with displacements between 4 GPM and 17 GPM at 1000 RPM.

*Flow rates are theoretical.

The PL Series is designed to meet the application needs of either a pump or a motor with displacements between 14 GPM and 30 GPM at 1000 RPM.

*Flow rates are theoretical.

Gear adapters mount between the vehicle transmission and power take-off to increase clearance and/or change rotation.

Muncie steel box reservoirs are offered in a large variety of sizes from compact to midsize models, providing a wide range of product diversity. Our reservoirs feature multiple return ports and are designed for easy installation by utilizing welded mounting rails with punched holes.

As the most versatile and widely used double-gear type power take-off in the industry, the TG Series is available with 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears for all popular transmissions.

Muncie Power's Trunnion Mount cylinders not only offer the mounting style that allows for increased capacity in the dump body by allowing for significant reduction or elimination of the dog house, but also many other features. With the strict machining tolerances, solid stop contact faces, and larger overlap between stages the Muncie Power cylinders are one of the strongest and most stable cylinders on the market.

The V080 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V080 is designed for flow rates up to 30 GPM (114 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

The V130 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V130 is designed for flow rates up to 55 GPM (208 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

Take control with Muncie Power Products’ V250 directional control valve. The V250 is constructed with high grade iron castings and nickel-plated or hard chrome spools for use in high pressure applications and can be configured with many different spool, control and positioner options. The V250 is designed for flow rates up to 75 GPM (280 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service and support.
