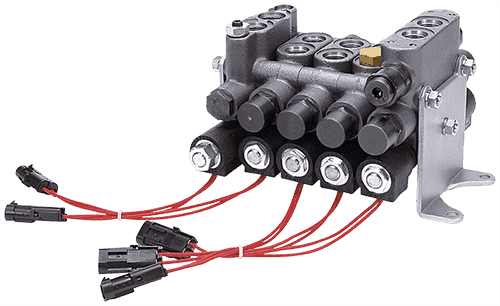

  • 17 Series Directional Control Valves

    Muncie 17 Series directional control valves are well suited for a wide variety of hydraulic applications where flow rates are low.

    Flow Capacity (Nominal)

    12 GPM (45 LPM)

    Flow Capacity (Maximum)

    18 GPM (68 LPM)

    Max Pressure

    3,500 PSI (242 BAR)

  • A30 Series Power Take Off

    Designed for Allison 3000 & 4000 Series Transmissions

    The A30 Series is a 10-bolt medium-duty, constant drive PTO rated for up to 415 lbs.ft. torque intermittent/continuous and features various product improvements allowing for easier installation and a more durable PTO for Allison 3000 and 4000 Series transmissions.



    ROTATABLE PUMP FLANGE

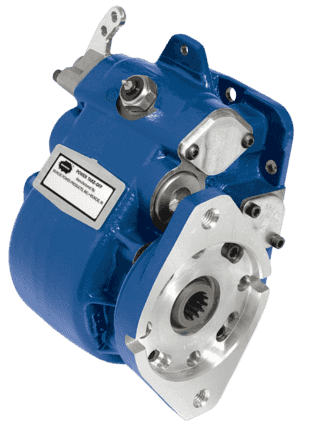

  • Alpha Series Power Take-Off

    The Alpha series PTO is an obsolete product. This page is used for reference material only.

    Muncie Power Products' "Alpha" Series PTO uses proven internal components from the TG Series, in a compact housing. The integral shift mechanism provides proper clearance on Dodge Ram 4 x 4 chassis with manual transmissions.

    Max Torque

    230 lbs.ft.

    Max HP (@1000 RPM)

    44 HP

    Weight

    22 lbs.

  • CS10/CS11 Series Power Take-Off

    Constructed with large gears, the CS10 Series PTO is built for heavy duty applications. The CS10 features a drag brake and an output shaft designed around popular hydraulic pumps. For a more compact installation, the CS11 is a remotely mounted solenoid option.

    Max Torque

    500 lbs.ft.

    Max HP (@1000 RPM)

    95 HP

    Weight

    68 lbs.

  • CS24/CS25 Series Power Take-Off

    The CS24/24 is an obsolete product. This page is used for reference material only.

    Designed with the same technology as the CS10 Series, the CS24 Series PTO is 20 percent smaller. CS PTOs are engaged by means of a direct mounted solenoid, which activates an internal wet clutch pack. With this feature, installation is made simple with a single hose connection

    Max Torque

    325 lbs.ft.

    Max HP (@1000 RPM)

    62 HP

    Weight

    52 lbs.

  • CS40/CS41 Series Power Take-Off

    When you need the max power from an Allison 3000 or 4000 and Caterpillar CX transmission, the CS40/41 Series power take-off delivers. Constructed with the widest gears possible, the CS40/41 is built for maximum strength, noise reduction, durability and the highest output torque rating available.

    Max Torque

    600 lbs.ft.

    Max HP (@1000 RPM)

    114 HP

    Weight

    69 lbs.

  • CS6/CS8 Series Power Take-Off

    Designed to work on Allison 1000 and 2000 series automatics and many other current manual transmissions, the CS6/8 Series PTOs offer direct mount pump options and a drag brake. Upgrading to a multi-disk clutch brake allows for absolute shaft stoppage.

    Max Torque

    350 lbs.ft.

    Max HP (@1000 RPM)

    67 HP

    Weight

    47 lbs.

  • DC Power Packs

    24V and 12 Volt DC Power Packs can be used to provide hydraulic power for light duty applications

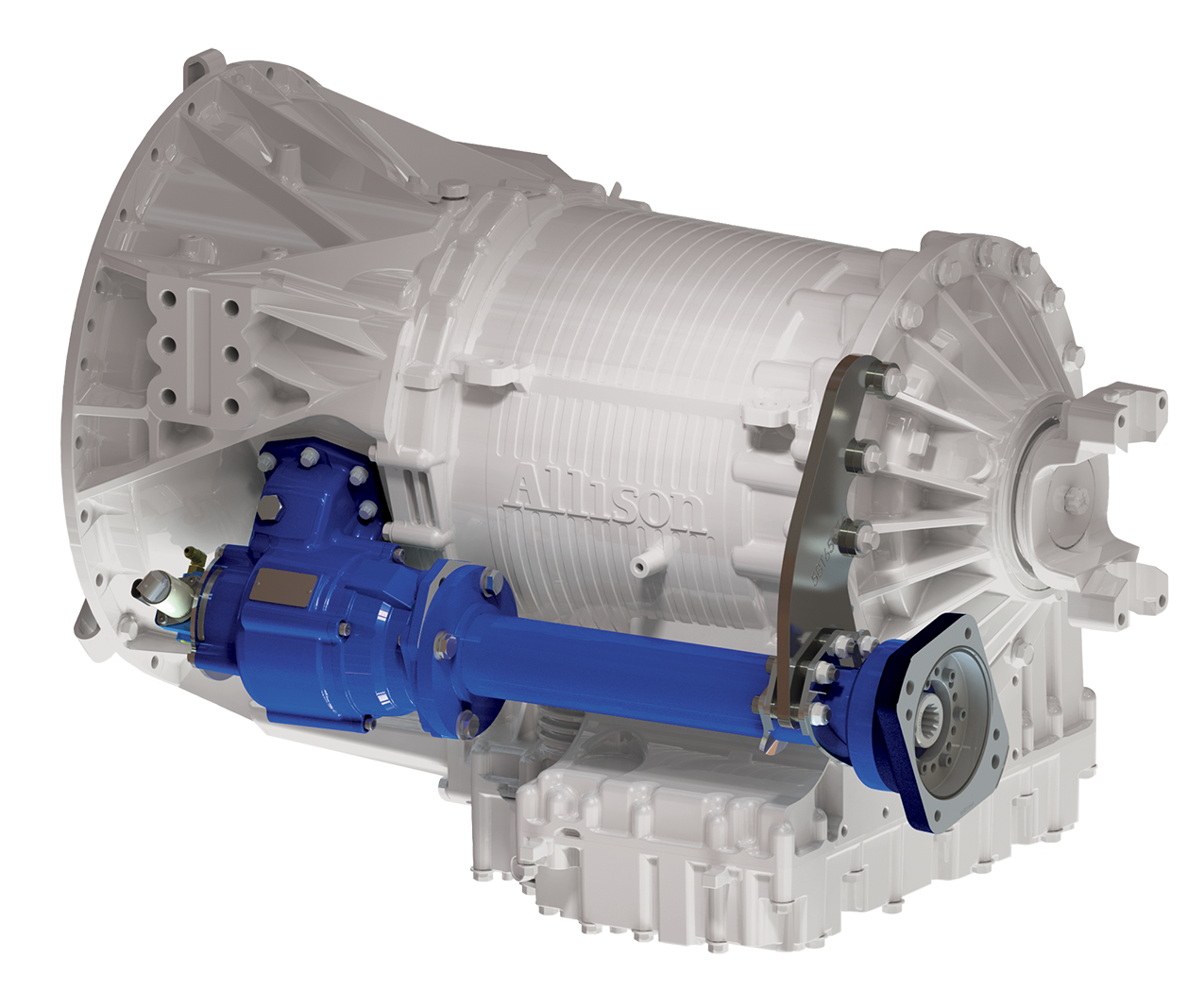

  • EX Drive Shaft Extension

    The EX Drive is designed to fit on Allison 3000 and 4000 series transmissions with retarder or cooler, and allows for large gear or piston pumps to be direct mounted, eliminating the need for timely driveline installations.

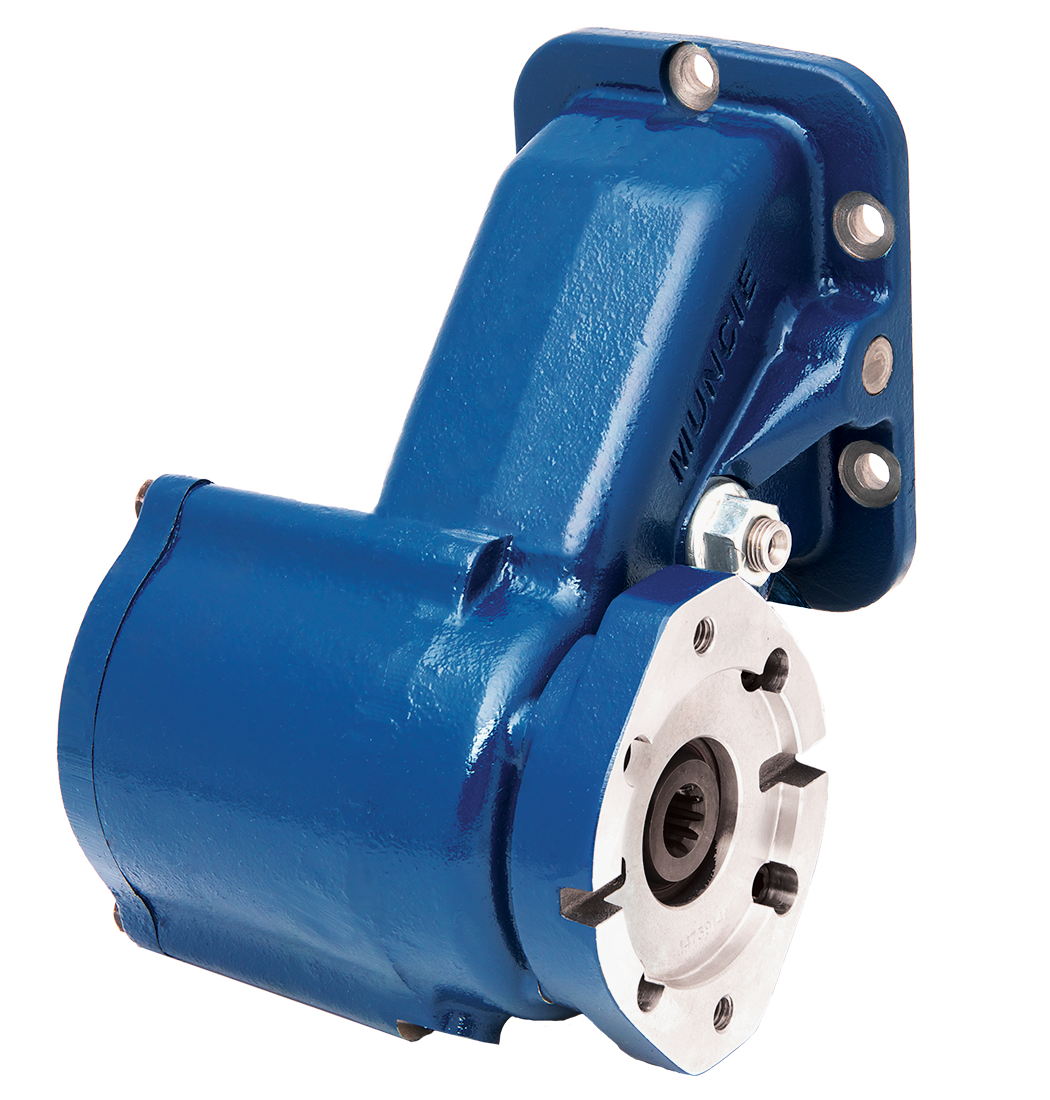

  • FA62 Series Power Take-Off

    The FA62 is an obsolete product. This page is used for reference material only.

    The FA62 Series power take-off was designed in cooperation with Ford Motor Company's engineers to fit the 4R100 automatic transmissions.

    1998-2004 F250-F550 (Gas or Diesel) with 4R100


  • FR3C Series Power Take-off

    The FR3C is an obsolete product. This page is used for reference material only.

    Muncie Power's FR3C power take-off gives you the maximum torque available from the Ford Torqshift transmission with a keyed shaft output.

    2016 (Built after Jan. 6) F650-F750 (Diesel) with 6R140

    Max Torque

    237 lbs.ft.

    Max HP (@1000 RPM)

    45 HP

  • HS24 SERIES Power Take-Off

    The HS24 series PTO is an obsolete product. This page is used for reference material only.

    A solution for limited clearance applications, the HS24 Series PTO features a sculptured housing designed to clear mounting obstructions and a direct mount solenoid for a clean and simple installation.

    Max Torque

    325 lbs.ft.

    Max HP (@1000 RPM)

    62 HP

    Weight

    52 lbs.

  • Hydraulic Oil Filters

    Muncie return line filters provide an effective and economical means of protecting and prolonging the life of any hydraulic system.

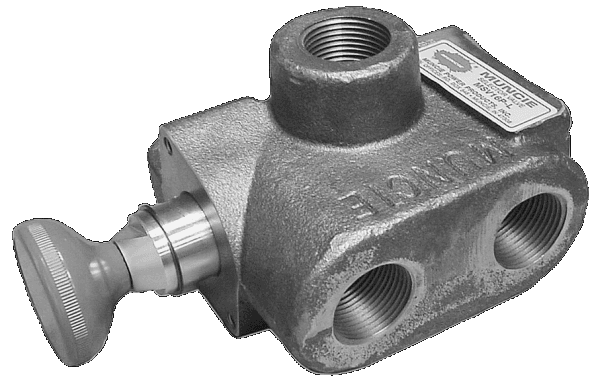

  • MSV Series Selector Valve

    The two position, two way valve provides a simple means of directing oil flow into two separate hydraulic circuits or can be used as a low pressure bypass back to the reservoir.

    Flow Capacity (Nominal)

    60 GPM (227 LPM)

    Max Pressure

    3,500 PSI NPT, 3,000 PSI ODT

  • Optimum W Series

    The Optimum W Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip® technology, the Optimum W Series exemplifies strength, endurance and rigidity making for long lasting units even in the most extreme conditions. The W Series is the smallest range of the Optimum group, providing 8 displacements to cover low flow, higher pressure requirements.

    Displacement (Cu.In./Rev)

    1.45 - 4.87

    GPM (@1000 RPM)*

    6.3 - 25.4

    Max Pressure

    4,350 PSI

    *Flow rates are theoretical.

  • Optimum X Series

    The Optimum X Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip® technology, the Optimum X Series exemplifies strength, endurance, and rigidity making for long lasting units even in the most extreme conditions. The X Series is the middle range of the Optimum group, providing nine displacements to cover light to heavy flow and pressure requirements.

    Displacement (Cu.In./Rev)

    3.18 - 8.43

    GPM (@1000 RPM)*

    13.8 - 36.5

    Max Pressure

    4,350 PSI

    *Flow rates are theoretical.

  • PF Series Gear Pump

    Ultimate power and performance in a small package best describes the PF4 Series gear pumps. The pressure balanced bushing blocks and sleeve bearings provide both long life and high performance.

    Displacement (Cu.In./Rev)

    .24 - 2.01

    GPM (@1000 RPM)*

    1 - 8.7

    Max Pressure

    3,625 PSI

    *Flow rates are theoretical.

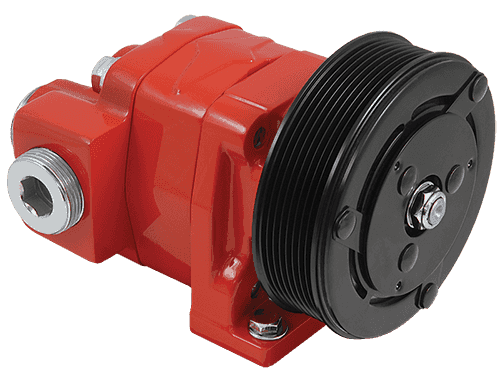

  • PH Series Clutch Pumps

    Muncie clutch pumps provide hydraulic power at the flip of a switch. Clutch pumps can be used in situations where a PTO aperture is unavailable or difficult to access. Although normally belt driven, clutch pumps may also be shaft driven from the engine crankshaft.

    Displacement (Cu.In./Rev)

    .62 - 2.96

    GPM (@1000 RPM)*

    2.7 - 12.8

    Max Pressure

    3,500 PSI

    *Flow rates are theoretical.

  • PH Series Gear Pump

    The PH Series is an all cast iron bushing style gear pump with displacements from .62 to 2.48 cu. in./rev.

    Displacement (Cu.In./Rev)

    .62 - 2.48

    GPM (@1000 RPM)*

    2.7 - 10.7

    Max Pressure

    3,500 PSI

    *Flow rates are theoretical.

  • PL Series Gear Pump

    The PL Series is designed to meet the application needs of either a pump or a motor with displacements between 14 GPM and 30 GPM at 1000 RPM.

    Displacement (Cu.In./Rev)

    3.18 - 7.01

    GPM (@1000 RPM)*

    13.8 - 30.3

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

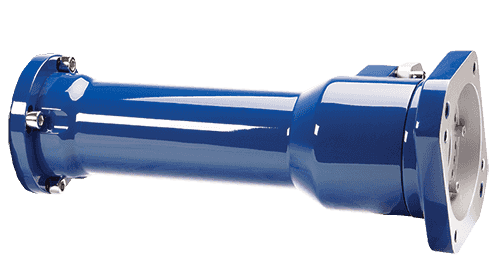

  • PTO Shaft Extensions

    This series is an obsolete product. This page is used for reference material only.

    Muncie’s PTO shaft extensions for the Allison 3000 and 4000 Series transmission provide easier hydraulic pump installation by moving the hydraulic pump mount to the rear of the transmission. Shaft Extensions are available for most Allison 3000 & 4000 Series transmission applications and popular pump mounts.

    Weight

    42 lbs.

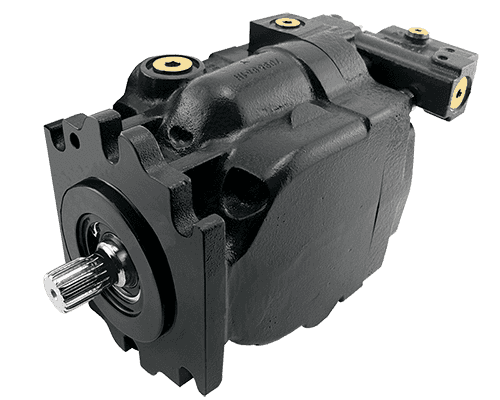

  • PV Series Displacement Piston Pumps

    The Muncie PV Series pumps consist of the PVL, PVJ, and PVE variable displacement piston pumps that are used in closed center hydraulic systems.

    Displacement (Cu.In./Rev)

    1.83 - 8.97

    GPM (@1000 RPM)*

    7.9 - 38.8

    Max Pressure

    4,495 PSI

    *Flow rates are theoretical.

  • SH Series Power Take-Off

    Created to fill the gap between the TG and 82 Series, the SH Series is an air shift only power take-off designed for high torque applications. The SH Series is an easy to mount PTO with an integral air shift design and high torque capacity.

    Max Torque

    400 lbs.ft.

    Max HP (@1000 RPM)

    76 HP

    Weight

    35 lbs.

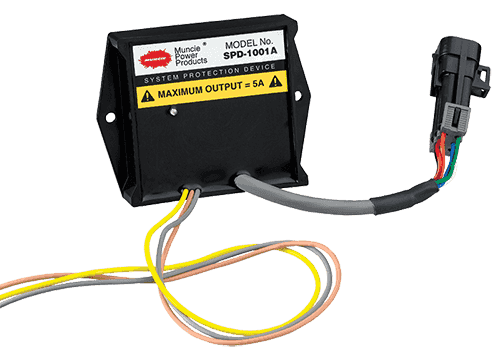

  • SPD-1001D System Protection Device

    The SPD-1001D is an obsolete product. This page is used for reference material only.

    The SPD-1001D offers over-speed protection as well as an interface for a wide range of interlock devices.

  • TG Series Power Take-Off

    As the most versatile and widely used double-gear type power take-off in the industry, the TG Series is available with 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears for all popular transmissions.

    Max Torque

    285 lbs.ft.

    Max HP (@1000 RPM)

    54 HP

    Weight

    22 lbs.

  • V080 Directional Control Valve

    The V080 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V080 is designed for flow rates up to 30 GPM (114 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    21 GPM (80 LPM)

    Flow Capacity (Maximum)

    30 GPM (114 LPM)

    Max Pressure (1-3 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (4-6 Sections)

    4,650 PSI (320 BAR)

    Max Pressure (7-10 Sections)

    4,350 PSI (300 BAR)

  • V130 Directional Control Valve

    The V130 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V130 is designed for flow rates up to 55 GPM (208 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    34 GPM (130 LPM)

    Flow Capacity (Maximum)

    55 GPM (208 LPM)

    Max Pressure (1-3 Sections)

    5,440 PSI (375 BAR)

    Max Pressure (4-6 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (7-10 Sections)

    4,710 PSI (325 BAR)
